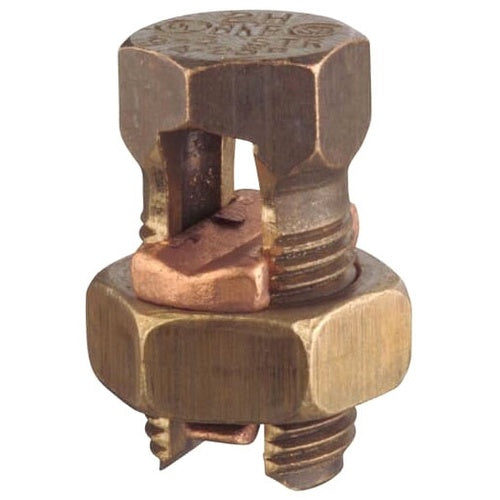

Blackburn 1H 1-Hole Copper Split Bolt

Overview

Blackburn 1H 1-Hole Copper Split Bolt

Product Specifications

• UPC: 78378620012
• Minimum Tap Conductor Size: 14 AWG Solid
• Maximum Tap Conductor Size: 2 AWG Stranded
• Material: Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Pressure Bar
• Approval: UL, CSA
• Additional Information: Overall Dimension 7/8 Inch Length x 1-11/32 Inch Height
• Catalog Number: 1H
• Brand Name: Blackburn
• Model: H
• Type: Split Bolt
• Installation: Hex Head Split Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 6 AWG Solid
• Maximum Run Conductor Size: 2 AWG Stranded
• Catalog Description: TYPE H - HIGH STRENGTH SPLIT-BOLT CONNECTOR, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 2 STR-6 SOL, CONDUCTOR RANGE FOR MIN TAP WITH ONE MAX MAIN 14 SOL
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Pressure Bar Material; 6 AWG Solid min. Run Conductor Size; 2 AWG Stranded Max. Run Conductor Size; 14 AWG Solid min. Tap Conductor Size; 2 AWG Stranded Max. Tap Conductor Size; Hex Head Split Bolt Installation; Copper Conductor Material; UL, CSA Approval; Overall Dimension 7/8 Inch Length X 1-11/32 Inch Height; H Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786200122
• SKU Name: 1h blkbrn
