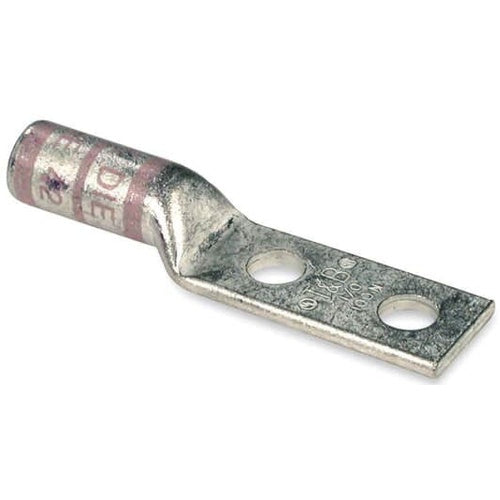

T&B 256-30695-869 Copper Tin Plated 2-Hole Lug Long Barrel 2-3 1/2B Black

Overview

T&B 256-30695-869 Copper Tin Plated 2-Hole Lug Long Barrel 2-3 1/2B Black

Product Specifications

• UPC: 78621090491
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Brown
• Die Index: 33
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 4-1/64 Inch
• Approval: UL, CSA
• Catalog Number: 256-30695-869
• Model: 256-30695
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 3 to 2 AWG (Code), 3 AWG (Weld, Flex), 125/24 (Flex), 60 (Navy, Flex), 50.4 KCMIL (Flex)
• Barrel Type: Long, Straight
• Pad Size: 2-7/8 Inch L x 3/4 Inch W x 3/32 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: COPPER TWO-HOLE LUG, LONG BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE #2-3 AWG, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE COLOR CODE BROWN, DIE CODE 33
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Brown Color; 4-1/64 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 3 to 2 AWG (Code), 3 AWG (Weld, Flex), 125/24 (Flex), 60 (Navy, Flex), 50.4 kcmil (Flex) Conductor Size; 1/2 Inch Stud Size; 33 Die Index; 2-7/8 Inch L X 3/4 Inch W X 3/32 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Straight Barrel Type; 256-30695 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210904917
• SKU Name: 25630695869 t & b
