Overview

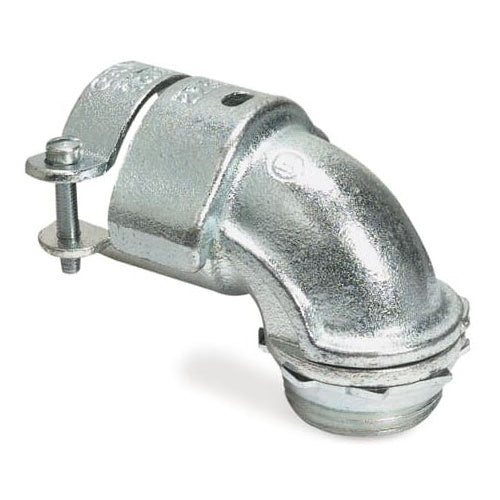

T&B 268-TB 1/2" 90D Squeeze Connector Armored .813-.837

Product Specifications

• UPC: 78621000268
• Installation: (2) Screw, Squeeze
• Throat Type: Non-Insulated
• Material: Zinc Electroplated Steel
• Standard Package: 100
• Approval: UL, CSA
• Catalog Number: 268-TB
• Brand Name: TITE-BITE[R]
• Type: 90 Degree
• Trade Size: 1/2 Inch
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Metal Clad Cable
• Cord Size: 0.813 to 0.937 Inch
• Catalog Description: SQUEEZE CONNECTOR, 90 DEGREE BEND, TRADE SIZE 1/2 INCH, KNOCKOUT SIZE 1/2 INCH, CABLE RANGE 0.813 TO 0.837 INCH, STEEL
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree Type; Zinc Electroplated Steel Material; (2) Screw, Squeeze Installation; UL, CSA Approval; 100 Standard Package; 1/2 Inch Trade Size; 1/2 Inch Knockout Size; 0.813 to 0.937 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Metal Clad Cable; Single Cable Opening; TITE-BITE[R] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210002682
• SKU Name: 268tb

Resources

• Manufacturer Spec Sheet
