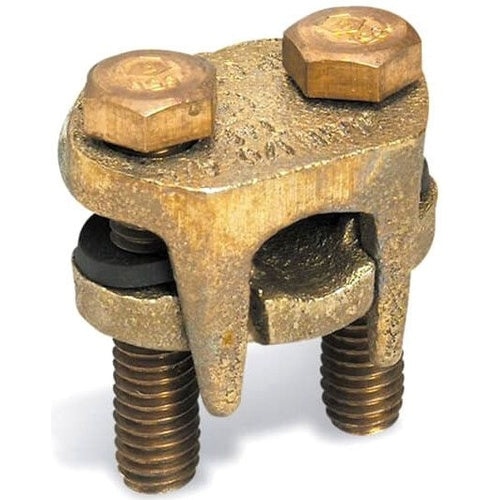

Blackburn 2B1000 1000 Copper 2- Bolt Connector

Overview

Blackburn 2B1000 1000 Copper 2- Bolt Connector

Product Specifications

• UPC: 78378640007
• Material: HIGH STRENGTH COPPER ALLOY BOLT/CASTING, NEOPRENE WASHER
• Approval: UL 486-A
• Catalog Number: 2B1000
• Brand Name: Blackburn[R]
• Installation: TWO BOLT
• Conductor Material: COPPER
• Minimum Run Conductor Size: 750 KCMIL
• Maximum Run Conductor Size: 1000 KCMIL
• Minimum Tap Conductor Size: 2 AWG SOLID
• Maximum Tap Conductor Size: 1000 KCMIL
• Catalog Description: COPPER TYPE 2B - TWO-BOLT CONNECTOR WITHOUT SPACER FOR WIRE RANGE MAIN: 750 - 1000 KCMIL TAP: 2 SOL. - 1000 KCMIL , BOLT SIZE 15/16
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Bolt/Casting, Neoprene Washer Material; 750 kcmil min. Run Conductor Size; 1000 kcmil Max. Run Conductor Size; 2 AWG Solid min. Tap Conductor Size; 1000 kcmil Max. Tap Conductor Size; Two Bolt Installation; Copper Conductor Material; UL 486-A Approval; BLACKBURN[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786400072
• SKU Name: 2b1000 blkbrn
