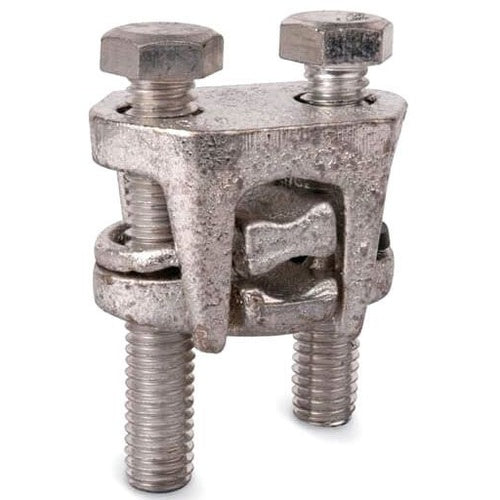

Blackburn 2B500PW 500 Copper 2- Bolt Connector

Overview

Blackburn 2B500PW 500 Copper 2- Bolt Connector

Product Specifications

• UPC: 78378640026
• Material: Aluminum
• Approval: UL E9809, CSA
• Additional Information: Conductor Diameter 0.813 to 0.679 Inch (Main), 0.813 to 0.204 Inch (Tap); Width 2-1/4 Inch; Bolt Size 3/4 Inch
• Catalog Number: 2B500PW
• Type: 1-Piece
• Installation: 2-Bolt Connector with Spacer
• Conductor Material: Copper/Aluminum/ACSR
• Minimum Run Conductor Size: 397.5 KCMIL to 4 AWG (Copper/Aluminum/ACSR)
• Maximum Run Conductor Size: 397.5 to 336.4 KCMIL (Copper/Aluminum/ACSR)
• Minimum Tap Conductor Size: 500 to 4 AWG Solid (Copper/Aluminum/ACSR)
• Maximum Tap Conductor Size: 500 to 350 KCMIL (Copper/Aluminum/ACSR)
• Catalog Description: ALUMINUM TYPE 2BPW - TWO-BOLT CONNECTOR WITH SPACER FOR WIRE RANGE MAIN: 397.5-4 - 397.5-336.4 TAP: 500-4 SOL. - 500-350, BOLT SIZE 3/4
• Category: Large Terminals & Connectors
• Full Technical Description: 1-Piece Type; Aluminum Material; 397.5 kcmil to 4 AWG (Copper/Aluminum/Acsr) min. Run Conductor Size; 397.5 to 336.4 kcmil (Copper/Aluminum/Acsr) Max. Run Conductor Size; 500 to 4 AWG Solid (Copper/Aluminum/Acsr) min. Tap Conductor Size; 500 to 350 kcmil (Copper/Aluminum/Acsr) Max. Tap Conductor Size; 2-Bolt Connector With Spacer Installation; Copper/Aluminum/Acsr Conductor Material; UL E9809, CSA Approval; Conductor Diameter 0.813 to 0.679 Inch (Main), 0.813 to 0.204 Inch (Tap); Width 2-1/4 Inch; Bolt Size 3/4 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786400263
• SKU Name: 2b500pw blkbrn
