Overview

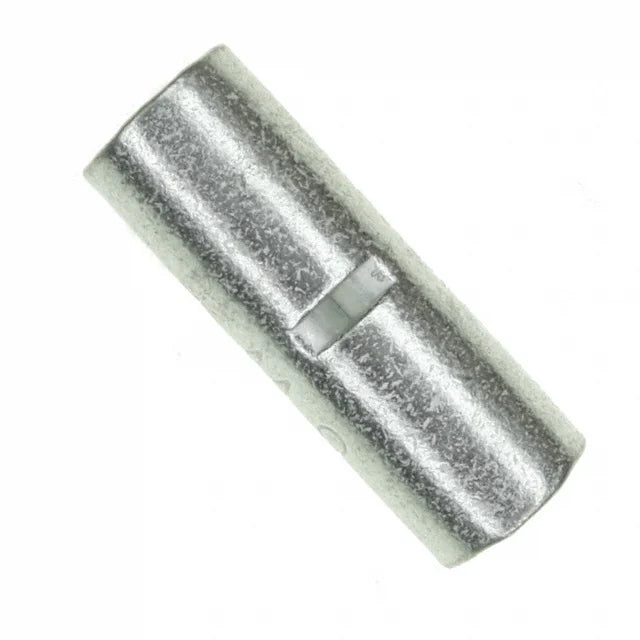

AMP 34322 SOLISTRAND 6 AWG Uninsulated Butt Splice

Product Specifications

• Catalog Description: BUTT SPLICE, 6 AWG, UNINSULATED, COPPER, TIN PLATED, CLOSED BARREL
• Category: Compression Connectors and Terminals
• Full Technical Description: SOLISTRAND Butt Splice; Designed for 6 AWG Copper Wire; Compatible with Solid and Stranded Discrete Wire; Uninsulated Construction; Non-Insulation Support Retention Type; Closed Barrel Type; Copper Contact Base Material; Tin Terminal Plating; 100 Microinch Terminal Plating Thickness; 34 Serrations; 25.78 mm [1.015 Inch] Product Length; 9.37 mm [0.369 Inch] Outside Diameter; 5.89 mm [0.232 Inch] Barrel Inside Diameter; 1.45 mm [0.057 Inch] Terminal Material Thickness; Wire Size Range 10.5 to 16.8 mm² or 20800 to 33100 CMA; 170 Deg C Maximum Temperature Rating; Suitable for Power Management, Motor Drive and Control, Communications, Consumer Electronics, Logistics, and Industrial Applications
• Manufacturer: TE Connectivity / AMP
• Manufacturer Brand: AMP
• Sub Category: Butt Splice
• SKU Name: 34322

Resources

• Manufacturer Specification Sheet
