AMP 34323 SOLISTRAND 4 AWG Butt Splice

Overview

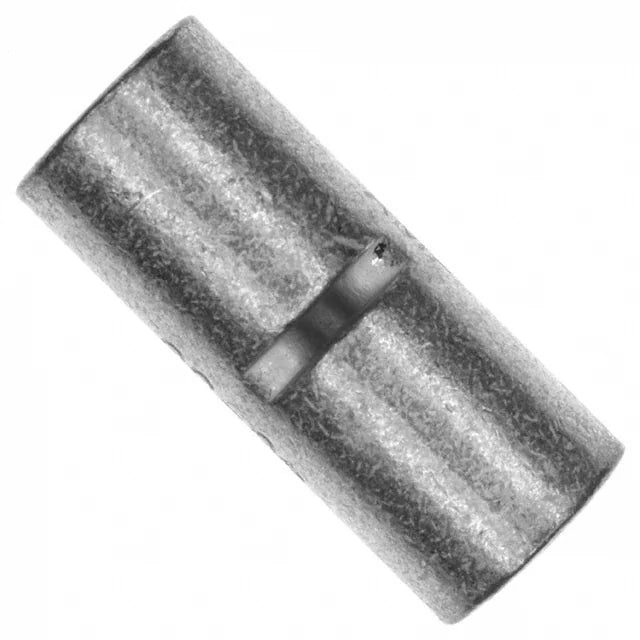

AMP 34323 SOLISTRAND 4 AWG Uninsulated Butt Splice

Product Specifications

• Catalog Description: BUTT SPLICE, 4 AWG, UNINSULATED, STANDARD, COPPER, TIN PLATED, CLOSED BARREL
• Category: Compression Connectors and Terminals
• Full Technical Description: SOLISTRAND Butt Splice; Designed for 4 AWG Copper Wire; Compatible with Solid and Stranded Discrete Wire; Uninsulated Construction; Non-Insulation Support Retention Type; Standard Splice Feature; Closed Barrel Type; Copper Contact Base Material; Tin Terminal Plating; 100 Microinch Terminal Plating Thickness; 28.96 mm [1.14 Inch] Product Length; 11.76 mm [0.463 Inch] Outside Diameter; 7.52 mm [0.296 Inch] Barrel Inside Diameter; 1.85 mm [0.073 Inch] Terminal Material Thickness; Wire Size 21 mm² or 33100 to 52600 CMA; 170 Deg C Maximum Temperature Rating; Suitable for Power Management, Motor Drive and Control, Communications, Consumer Electronics, Logistics, and Industrial Applications
• Made In Usa:
• Manufacturer: TE Connectivity / AMP
• Manufacturer Brand: AMP
• Sub Category: Butt Splice
• Unspsc:
• UPC 12 Digit:
• SKU Name: 34323

Resources

Manufacturer Specification Sheet
