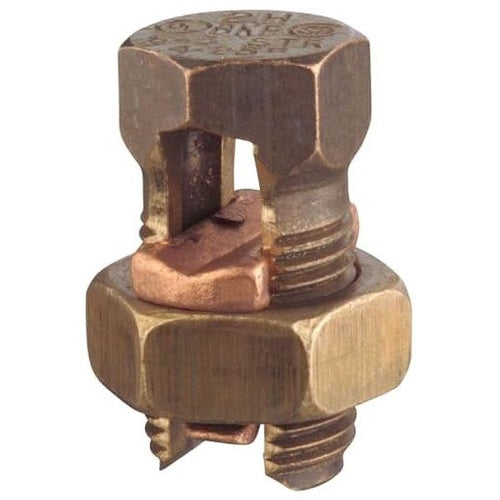

Blackburn 350M 350 Copper Split Bolt (C350)

Overview

Blackburn 350M 350 Copper Split Bolt (C350)

Product Specifications

• UPC: 78378685509
• Minimum Tap Conductor Size: 1/0 AWG Stranded
• Maximum Tap Conductor Size: 350 KCMIL
• Material: Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Alloy Pressure Bar
• Approval: UL, CSA
• Additional Information: Overall Dimension 1-21/32 Inch Length x 2-11/16 Inch Height
• Catalog Number: 350M
• Brand Name: Blackburn
• Model: H
• Type: Split Bolt
• Installation: Hex Head Split Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 250 KCMIL
• Maximum Run Conductor Size: 350 KCMIL
• Catalog Description: TYPE H - HIGH STRENGTH SPLIT-BOLT CONNECTOR, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 350 KCMIL-250 KCMIL, CONDUCTOR RANGE FOR MIN TAP WITH ONE MAX MAIN 1/0 STR
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Alloy Pressure Bar Material; 250 kcmil min. Run Conductor Size; 350 kcmil Max. Run Conductor Size; 1/0 AWG Stranded min. Tap Conductor Size; 350 kcmil Max. Tap Conductor Size; Hex Head Split Bolt Installation; Copper Conductor Material; UL, CSA Approval; Overall Dimension 1-21/32 Inch Length X 2-11/16 Inch Height; H Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786855094
• SKU Name: 350m blkbrn
