AMP 35110 PIDG 12-10 AWG Ring Terminal

Overview

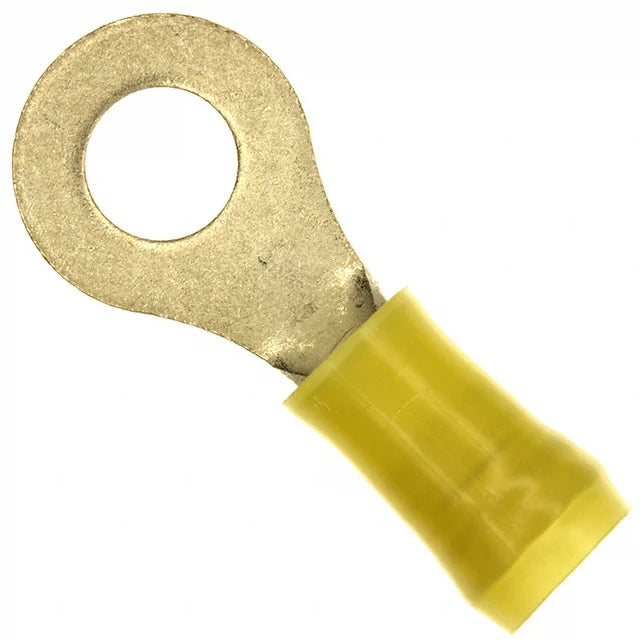

AMP 35110 PIDG 12-10 AWG Partially Insulated Ring Terminal

Product Specifications

• Catalog Description: CLOSED RING TONGUE TERMINAL, 12-10 AWG, 1/4 INCH/M6 STUD, PIDG, PARTIALLY INSULATED
• Category: Compression Connectors and Terminals
• Full Technical Description: PIDG Closed Ring Tongue Terminal; Designed for 12 to 10 AWG Copper Wire; 1/4 Inch or M6 Stud Size; 6.73 mm [0.265 Inch] Stud Diameter; One-Hole Ring Tongue Design; Closed Barrel Type; Straight Terminal Orientation; Partially Insulated Construction; Insulation Support Retention Type; Tin Plating; 300 Volt Rating; Yellow Insulation; Wire Size Range 2.62 to 6.64 mm² or 5180 to 13100 CMA; Tongue Thickness 1.02 mm [0.04 Inch]; Product Length 33.58 mm [1.32 Inch]; Compatible Insulation Diameter Range 3.81 to 6.35 mm [0.15 to 0.25 Inch]; Operating Temperature Range 0 to 105 Deg C; Government Qualified Terminal; Mil-Spec MS25036-157, Class 1
• Made In Usa:
• Manufacturer: TE Connectivity / AMP
• Manufacturer Brand: AMP
• Sub Category: Ring Terminal
• Unspsc:
• UPC 12 Digit:
• SKU Name: 35110
