Product information
Overview

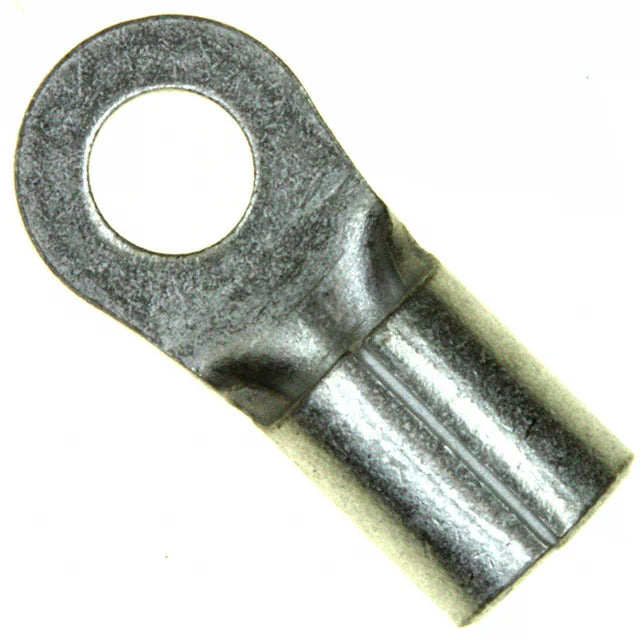

AMP 35476 SOLISTRAND 12-10 AWG Uninsulated Ring Terminal
Product Specifications
- Catalog Description: CLOSED RING TONGUE TERMINAL, 12-10 AWG, #6/M3.5 STUD, UNINSULATED, TIN PLATED
- Category: Compression Connectors and Terminals
- Full Technical Description: SOLISTRAND Closed Ring Tongue Terminal; Designed for 12 to 10 AWG Copper Wire; #6 or M3.5 Stud Size; 3.68 mm [0.145 Inch] Stud Diameter; One-Hole Ring Tongue Design; Closed Barrel Type; Straight Terminal Orientation; Uninsulated Construction; Non-Insulation Support Retention Type; Tin Plating; Wire Size Range 2.62 to 6.64 mm² or 5180 to 13100 CMA; Tongue Thickness 0.99 mm [0.039 Inch]; Product Length 16 mm [0.63 Inch]; Barrel Inside Diameter 3.28 mm [0.129 Inch]; Operating Temperature Range 0 to 170 Deg C; Compatible with Copper Wire
- Manufacturer: TE Connectivity / AMP
- Manufacturer Brand: AMP
- Sub Category: Ring Terminal
- SKU Name: 35476
