AMP 35772 SOLISTRAND 12-10 AWG Ring Terminal

Overview

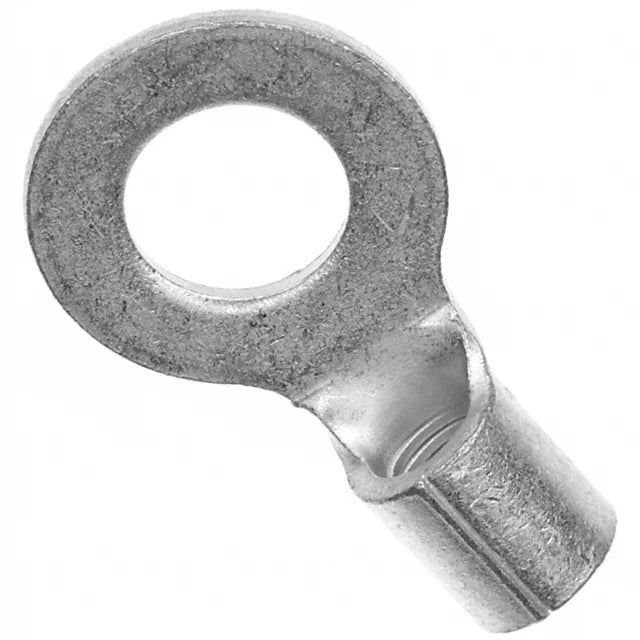

AMP 35772 SOLISTRAND 12-10 AWG Uninsulated Ring Terminal

Product Specifications

• Catalog Description: CLOSED RING TONGUE TERMINAL, 12-10 AWG, 1/4 INCH/M6 STUD, UNINSULATED, TIN PLATED
• Category: Compression Connectors and Terminals
• Full Technical Description: SOLISTRAND Closed Ring Tongue Terminal; Designed for 12 to 10 AWG Copper Wire; 1/4 Inch or M6 Stud Size; 6.73 mm [0.265 Inch] Stud Diameter; One-Hole Ring Tongue Design; Closed Barrel Type; Straight Terminal Orientation; Uninsulated Construction; Non-Insulation Support Retention Type; Tin Plating; Wire Size Range 2.62 to 6.64 mm² or 5180 to 13100 CMA; Tongue Thickness 0.99 mm [0.04 Inch]; Product Length 21.97 mm [0.86 Inch]; Barrel Inside Diameter 3.28 mm [0.129 Inch]; Operating Temperature Range 0 to 170 Deg C; Compatible with Copper Wire; Suitable for Power Management, Motor Drive and Control, Communications, Networking, Consumer Electronics, Logistics, and Industrial Applications
• Made In Usa:
• Manufacturer: TE Connectivity / AMP
• Manufacturer Brand: AMP
• Sub Category: Ring Terminal
• Unspsc:
• UPC 12 Digit:
• SKU Name: 35772

Resources

Manufacturer Specification Sheet
