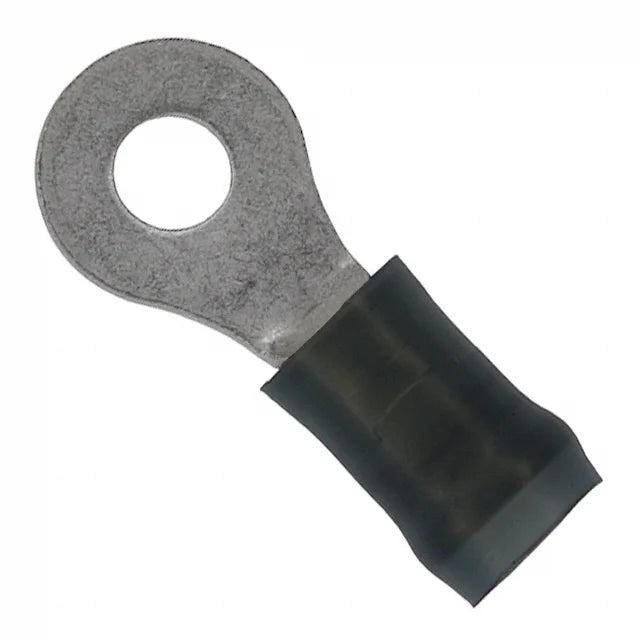

AMP 36158 PIDG 16-14 AWG Partially Insulated Ring Terminal

Product Specifications

• Catalog Description: CLOSED RING TONGUE TERMINAL, 16-14 AWG, #6/M3.5 STUD, PIDG, PARTIALLY INSULATED
• Category: Compression Connectors and Terminals
• Full Technical Description: PIDG Closed Ring Tongue Terminal; Designed for 16 to 14 AWG Copper Wire; #6 or M3.5 Stud Size; 3.68 mm [0.145 Inch] Stud Diameter; One-Hole Ring Tongue Design; Closed Barrel Type; Straight Terminal Orientation; Partially Insulated Construction; Insulation Support Retention Type; Blue Insulation; Tin Plating; 300 Volt Rating; Wire Size Range 1.04 to 2.62 mm² or 2050 to 5180 CMA; Product Length 21.82 mm [0.859 Inch]; Tongue Thickness 0.79 mm [0.031 Inch]; Compatible Insulation Diameter Range 2.92 to 4.31 mm [0.115 to 0.17 Inch]; Operating Temperature Range 0 to 105 Deg C; Compatible with Copper Wire
• Manufacturer: TE Connectivity / AMP
• Manufacturer Brand: AMP
• Sub Category: Ring Terminal
• SKU Name: 36158

Resources

• Manufacturer Specification Sheet
