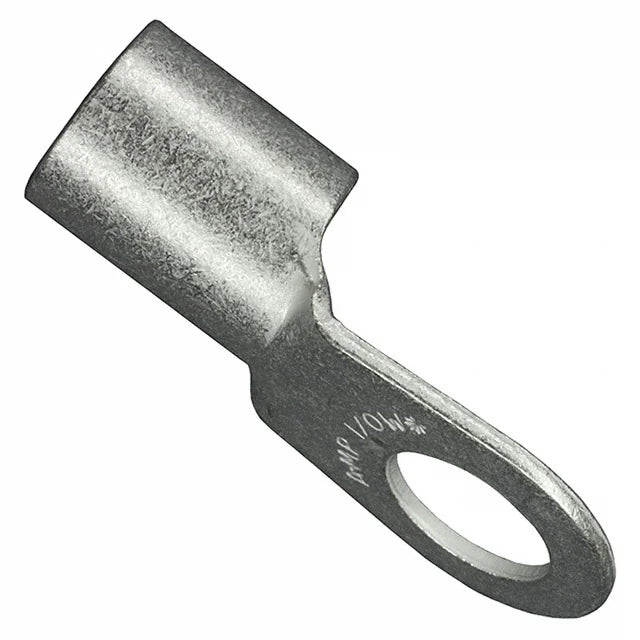

AMP 36919 SOLISTRAND 1/0 AWG Uninsulated Ring Terminal
Product Specifications
- Catalog Description: CLOSED RING TONGUE TERMINAL, 1/0 AWG, 1/2 INCH/M12 STUD, UNINSULATED, TIN PLATED
- Category: Compression Connectors and Terminals
- Full Technical Description: SOLISTRAND Closed Ring Tongue Terminal; Designed for 1/0 AWG Copper Wire; 1/2 Inch or M12 Stud Size; 13.08 mm [0.515 Inch] Stud Diameter; One-Hole Ring Tongue Design; Closed Barrel Type; Straight Terminal Orientation; Uninsulated Construction; Non-Insulation Support Retention Type; Tin Plating; Wire Size Range 42.4 to 60.6 mm² or 83700 to 119500 CMA; Tongue Thickness 1.78 mm [0.07 Inch]; Product Length 49.68 mm [1.96 Inch]; Barrel Inside Diameter 11.28 mm [0.444 Inch]; Operating Temperature Range 0 to 170 Deg C; Compatible with Copper Wire
- Manufacturer: TE Connectivity / AMP
- Manufacturer Brand: AMP
- Sub Category: Ring Terminal
- SKU Name: 36919
