Overview

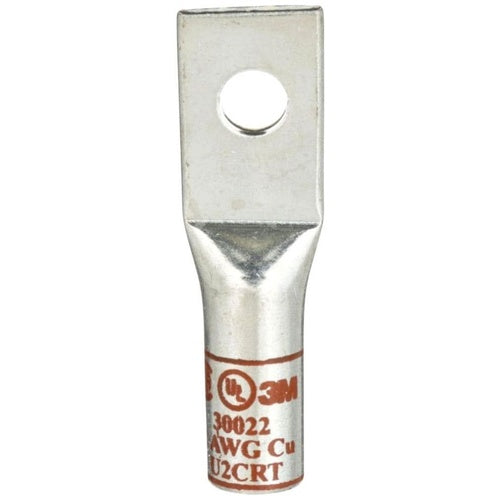

3M 30022 Scotchlok Copper 1-Hole Lug, Up To 35 Kv, 2 Awg, Stud Size 1/4 (6), Brown

Product Specifications

• UPC: 05400712477
• Pad Size: 0.89 Inch Length x 0.63 Inch Width
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Brown
• Material: Tin Plated Copper
• Overall Length: 1.97 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Outer Diameter 0.42 Inch; Used On Copper Conductor; Application Indoor/Outdoor
• Catalog Number: 30022
• Brand Name: Scotchlok[TM]
• Model: 30000
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 2 AWG
• Barrel Type: Standard
• Barrel Length: 0.81 Inch
• Catalog Description: THE 3M SCOTCHLOK COPPER LUGS 30000 SERIES ARE ONE HOLE, STANDARD BARREL LUGS FROM 64/0 AWG DESIGNED FOR TERMINATING COPPER CONDUCTORS. EACH LUG IS TIN PLATED TO RESIST CORROSION AND CAN BE INSTALLED WITH STANDARD INDUSTRY TOOLS. CHAMFERED ENDS ENSURE EASE OF CONDUCTOR INSERTION.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Brown Color; 1.97 Inch Overall Length; 0.81 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 2 AWG Conductor Size; 1/4 Inch Stud Size; 0.89 Inch Length X 0.63 Inch Width Pad Size; 1 Pad Hole(S); Standard Barrel Type; RoHS Compliant; Outer Diameter 0.42 Inch; Used on Copper Conductor; Application Indoor/Outdoor; 30000 Model
• Manufacturer: 3M Co.
• Manufacturer Brand: 3M Electrical Products
• Sub Category: Compression Cable Lug
• Unspsc: 27121707
• UPC 12 Digit: 054007124771
• SKU Name: 3m 30022
