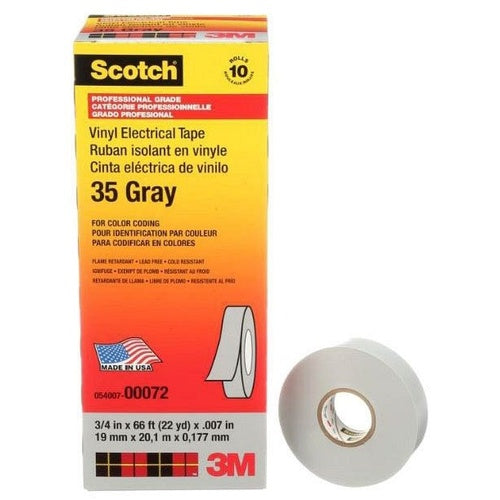

3M 35-3/4X66FT-GY Scotch Vinyl Tape, 3/4" X 66 Ft, Gray

Product Specifications

• UPC: 05400700072
• Finish: Gray
• Dielectric Strength: 1250 Volt per Mil
• Temperature Rating: 32 to 220 Deg F
• Application: General Use, Bunding, Harnessing Indoor
• Approval: UL, CSA
• Additional Information: RoHS Compliant ; Breaking Strength 17 Inch-Pound; Adhesion Strength 40 Ounce; Electrolytic Corrosion Factor 0.9; Elongation 225 Percent; Applicable Standard VDE
• Catalog Number: 35-3/4X66FT-GY
• Brand Name: Scotch[R]
• Type: Color Coding, Insulating
• Voltage Rating: 600 Volt
• Length: 66 Foot
• Width: 0.75 Inch
• Thickness: 7 Mil
• Material: PVC (Backing), Rubber Resin (Adhesive)
• Catalog Description: SCOTCH VINYL COLOR CODING ELECTRICAL TAPE 35 IS A 7 MIL THICK, PREMIUM GRADE, COLOR CODED ELECTRICAL TAPE. THIS FLAME RETARDANT TAPE IS SUITABLE FOR USE IN PHASE IDENTIFICATION, COLOR CODING OF MOTOR LEADS AND PIPING SYSTEMS AND FOR MARKING SAFETY AREAS. THIS TAPE IS 600V RATED AND WITHSTANDS A TEMPERATURE RANGE OF 32 TO 221 F (0 TO 105 C).
• Category: Tape
• Full Technical Description: Low Voltage, Color Coding, Insulated Type; PVC (Backing), Rubber Resin (Adhesive) Material; Gray Finish; 66 Foot; 3/4 Inch; UL, CSA, VDE Approval; Electrical Maintenance, Professional Grade, Premium Grade Application; 600 Volt Voltage Rating; 7 mil Thickness; 32 to 220 Deg F Temperature Rating; 1250 Volt Per mil Dielectric Strength; RoHS Compliant; Adhesion Strength 20 Ounce Per Inch; Construction Feature Chemical Resistant, Flame Retardant; 35 Model
• Made In Usa: Yes
• Manufacturer: 3M Co.
• Manufacturer Brand: 3M Electrical Products
• Sub Category: Electrical Tape
• Unspsc: 31201500
• UPC 12 Digit: 054007000723
• SKU Name: 3m 35gray3/4x66ft
