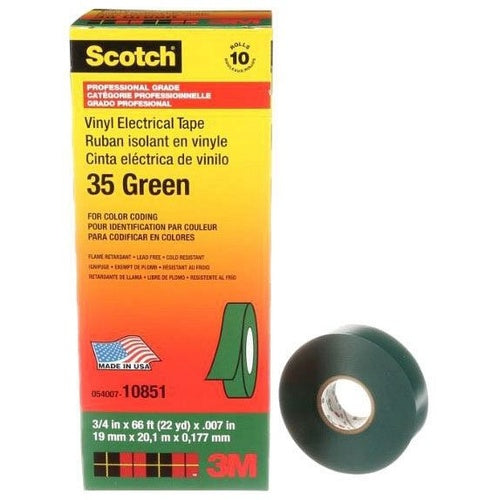

3M 35-3/4X66FT-GN Vinyl Color Coding Tape, 3/4" X 66 Ft, Green,

Overview

3M 35-3/4X66FT-GN Vinyl Color Coding Tape, 3/4" X 66 Ft, Green,

Product Specifications

• UPC: 05400710851
• Finish: Green
• Dielectric Strength: 1250 Volt per Mil
• Temperature Rating: 32 to 220 Deg F
• Application: General Use, Bunding, Harnessing Indoor
• Approval: UL, CSA
• Additional Information: RoHS Compliant ; Breaking Strength 17 Inch-Pound; Adhesion Strength 40 Ounce; Electrolytic Corrosion Factor 0.9; Elongation 225 Percent; Applicable Standard VDE
• Catalog Number: 35-3/4X66FT-GN
• Brand Name: Scotch[R]
• Type: Color Coding, Insulating
• Voltage Rating: 600 Volt
• Length: 66 Foot
• Width: 0.75 Inch
• Thickness: 7 Mil
• Material: PVC (Backing), Rubber Resin (Adhesive)
• Catalog Description: SCOTCH VINYL COLOR CODING ELECTRICAL TAPE 35 IS A 7 MIL THICK, PREMIUM GRADE, COLOR CODED ELECTRICAL TAPE. THIS FLAME RETARDANT TAPE IS SUITABLE FOR USE IN PHASE IDENTIFICATION, COLOR CODING OF MOTOR LEADS AND PIPING SYSTEMS AND FOR MARKING SAFETY AREAS. THIS TAPE IS 600V RATED AND WITHSTANDS A TEMPERATURE RANGE OF 32 TO 221 F (0 TO 105 C).
• Category: Tape
• Full Technical Description: Color Coding, Premium Grade Type; Vinyl Material; Green Finish; 66 Foot; 3/4 Inch; UL, CSA, VDE Approval; 600/1000 Volt Voltage Rating; 7 mil Thickness; 220 Deg F Temperature Rating; 1000 Volt Per mil Dielectric Strength; Rohs/Reach Compliant; Adhesive Material Rubber Resin; Backing Material PVC; Tensile Strength 14.6 Pound Per Inch; 35 Model
• Made In Usa: Yes
• Manufacturer: 3M Co.
• Manufacturer Brand: 3M Electrical Products
• Sub Category: Electrical Tape
• Unspsc: 31201500
• UPC 12 Digit: 054007108511
• SKU Name: 3m 35green3/4x66ft
