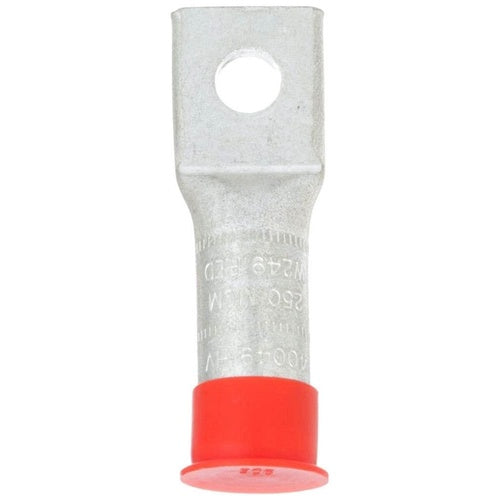

3M 40049 Scotchlok Aluminum 1-Hole Lug, Up To 35 Kv, 250 Kcmil, Red

Product Specifications

• UPC: 05400713525
• Pad Size: 1.31 Inch L x 1.24 Inch W
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Red
• Die Index: 249
• Material: Aluminum
• Overall Length: 3.62 Inch
• Approval: UL, CSA
• Additional Information: Inside Diameter 0.59 Inch; Outside Diameter 0.9 Inch; Used On Aluminum/Copper Conductor; Application Indoor, Outdoor; Operating Temperature 90 Deg C
• Catalog Number: 40049
• Brand Name: Scotchlok[TM]
• Model: 40000
• Voltage Rating: 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 250 KCMIL
• Barrel Type: Standard
• Barrel Length: 1.56 Inch
• Catalog Description: 3M SCOTCHLOK 40000 1 HOLE COMPRESSION LUG IS SUITABLE FOR USE ON COPPER OR ALUMINUM CONDUCTORS. THE LUG HAS A STANDARD BARREL THAT ENSURES A SECURE FIT. ALUMINUM CONSTRUCTION OFFERS HIGH CONDUCTIVITY AND AN ELECTRO TIN PLATED FINISH RESISTS CORROSION. IT IS RATED FOR 35 KV VOLTAGE APPLICATIONS.
• Category: Large Terminals & Connectors
• Full Technical Description: Aluminum Material; Red Color; 3.62 Inch Overall Length; 1.56 Inch Barrel Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 250 kcmil Conductor Size; 1/2 Inch Stud Size; 249 Die Index; 1.31 Inch L X 1.24 Inch W Pad Size; 1 Pad Hole(S); Standard Barrel Type; Inside Diameter 0.59 Inch; Outside Diameter 0.9 Inch; Used on Aluminum/Copper Conductor; Application Indoor, Outdoor; Operating Temperature 90 Deg C; 40000 Model
• Made In Usa: Yes
• Manufacturer: 3M ELECTRICAL MARKET ELECTRICAL PRODUCTS
• Manufacturer Brand: 3M Electrical Products
• Sub Category: Compression Cable Lug
• Unspsc: 27121707
• UPC 12 Digit: 054007135258
• SKU Name: 3m 40049
