3M 5810-B-2 15KV 200A Industrial Loadbreak Elbow Connector

Overview

3M 5810-B-2 15KV 200A Industrial Loadbreak Elbow Connector

Product Specifications

• UPC: 05400704774, 054007047742, 00054007047742
• Brand: 3M
• Manufacturer: 3M Electrical Products
• Catalog Number: 5810-B-2
• Type: Elbow Loadbreak Connector
• Item Type: Industrial Loadbreak Elbow Kit
• Voltage Rating: 15 kV
• Amperage Rating: 200 A
• Conductor Size: 2 to 1 AWG
• Cable Diameter Range: 0.700 to 0.910 in
• Insulation: EPDM Rubber Insulation
• Insulation Diameter: 1.33
• Material: Peroxide-Cured EPDM Rubber
• Cable Type: Tape Shield; Wire Shield; UniShield®; Jacketed Concentric Neutral
• Connector Features: Copper Top Connector; Tin-Plated Copper Loadbreak Probe; Ablative Arc Follower Tip; Stainless Steel Reinforced Pulling Eye; Capacitive Test Point
• Package Quantity: 1
• Country Of Origin: United States
• Made In USA: Yes
• Standards Met: ANSI/IEEE Standard 386
• Application: Underground Cable Connections, Transformer Terminations, Switchgear, Junctions and Industrial Power Distribution Systems
• Category: Compression Connectors and Terminals

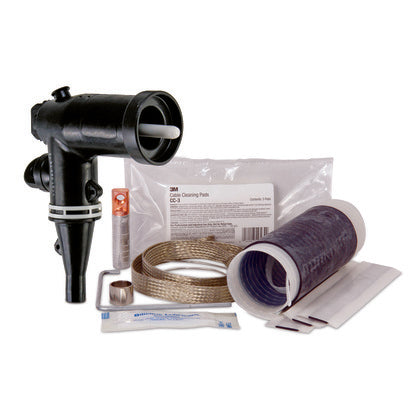

• Full Technical Description: 15 kV, 200 A Industrial Loadbreak Elbow Connector; Fully Shielded and Insulated Dead Front Termination; Designed for Connecting 5 to 15 kV Underground Cable to Transformers, Switchgear and Junctions Equipped with Loadbreak Bushings; Compatible with Tape Shield, Wire Shield, UniShield® and Jacketed Concentric Neutral Cables; Includes Cold Shrink Jacket Seal and Grounding Assemblies; Molded from High Quality Peroxide-Cured EPDM Insulation; Features Copper Top Compression Connector, Tin-Plated Copper Loadbreak Probe, Stainless Steel Reinforced Pulling Eye and Capacitive Test Point; Meets ANSI/IEEE 386 Requirements
• Manufacturer Brand: 3M
• Sub Category: Loadbreak Elbow Connectors
• SKU Name: 3m 5810-b-2 15kv 200a loadbreak elbow connector

Resources

• Manufacturer Spec Sheet
