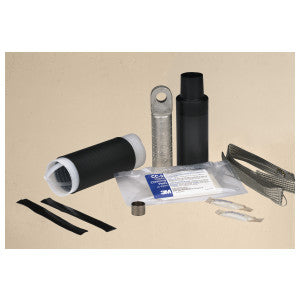

3M™ Modular Splicing Kit 5815-B43, 600 Amp, 5-8 kV

Overview

3M™ Modular Splicing Kit 5815-B43, 600 Amp, 5-8 kV

Product Specifications

• UPC: 05400743451
• Brand: 3M
• Manufacturer: 3M Electrical Products
• Catalog Number: 5815-B43
• MFR #: 5815-B43
• SKU: 99574981
• Series: 5815
• Type: Modular Splicing Kit
• Item Type: Fully Shielded Separable Connector System
• Connector Type: Dead Break Elbows
• Voltage Rating: 5-8 kV
• Rated Voltage: 5 kV
• Amperage Rating: 600A
• Conductor Size: 750 kcmil
• No. of Conductors: 1
• Cable Type: Stranded
• Insulation Diameter Range: 1.220 to 1.420 in
• Material: EPDM Rubber
• Color: Black
• Color Family: Black
• Length: 12.25 in
• Maximum Temperature Rating: 194°F
• Application: 600 A Deadbreak
• Country Of Origin: United States
• ECCN: EAR99
• UNSPSC: 39121450
• Category: Compression Connectors and Terminals
• Full Technical Description: 3M 5815-B43 Modular Splicing Kit; 600 Amp Fully Shielded Separable Connector System; Designed for 5-8 kV Electrical Distribution Applications; Supports 750 kcmil Stranded Conductors with 1.220 to 1.420 Inch Insulation Diameter Range; Features EPDM Rubber Construction, Black Deadbreak Elbow Connector Design and 600 A Deadbreak Application Performance
• Manufacturer Brand: 3M
• Sub Category: Modular Splicing Kits
• SKU Name: 3m 5815-b43 600a modular splicing kit

Resources

• Manufacturer Spec Sheet
