3M 7621-T-95 Cold Shrink QT-III Termination Kit

Overview

3M 7621-T-95 Cold Shrink QT-III Termination Kit, Tape/Wire/UniShield Shielding, 5-8.7 kV, Insulation OD 0.44-0.89"

Product Specifications

• UPC: 05400741759
• UPC 12 Digit: 054007417590
• Brand: 3M
• Manufacturer: 3M Co.
• Manufacturer Brand: 3M Electrical Products
• Catalog Number: 7621-T-95
• Part Number: 7621-T-95
• Model: 7620-T
• Type: Cold Shrink
• Product Description: 3M 7621-T-95 Cold Shrink QT-III Termination Kit, Tape/Wire/UniShield Shielding, 5-8.7 kV, Insulation OD 0.44-0.89"
• Voltage Rating: 5 to 35 kV
• BIL Rating: 95 kV
• Cable Type: Tape/Wire Shield; UniShielded
• Cable Insulation Outer Diameter: 0.5 to 0.7 in
• Connector Type: Lug, Not Included
• Conductor Size: 2 to 3/0 AWG at 5 kV; 4 to 2/0 AWG at 8.7 kV
• Insulator Type: Tubular
• Insulator Material: Silicone Rubber
• Number Of Terminations: 3
• Number Of Conductors: 1
• Maximum Installed Length: 8.5 in
• Application: Indoor and Weather-Protected Power Cable Termination
• Applicable Standard: IEEE
• Made In USA: Yes
• Category: Splicing & Terminating Kits
• Sub Category: Insulated Indoor Termination Kit
• UNSPSC: 39120000
• Unique Product Key: 5762233
• Commodity Code Enhanced: 64130

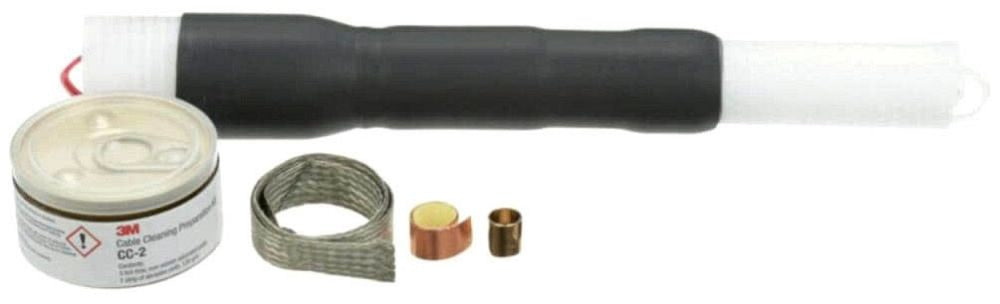

• Contents: 3 Hi-K Silicone Rubber Terminations; 3 Pre-Formed Ground Braids; 3 Constant Force Springs; 6 Mastic Seal Strips; 1 Cable Preparation Kit; 3 Copper Foil Shielding Tape Strips; 1 Instruction Sheet
• Catalog Description: 3M Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series includes one-piece, non-skirted silicone rubber terminations for indoor and weather-protected applications. Designed for terminating solid dielectric shielded power cable rated 5 to 35 kV with tape shield, wire shield and UniShield constructions.
• Full Technical Description: Cold Shrink QT-III Termination Kit for Tape/Wire Shield and UniShielded Cable; Includes Hi-K Silicone Rubber Terminations, Pre-Formed Ground Braids, Constant Force Springs, Mastic Seal Strips, Cable Preparation Kit, Copper Foil Shielding Tape Strips and Instruction Sheet; Lug Connector Type Not Included; 5 to 35 kV Voltage Rating; 95 kV BIL Rating; 0.5 to 0.7 Inch Cable Insulation Outer Diameter; Tubular Silicone Rubber Insulator Design; 3 Terminations; 8.5 Inch Maximum Installed Length; Indoor Application; IEEE Applicable Standard
• SKU Name: 3m 7621-t-95 cold shrink qt iii termination kit
