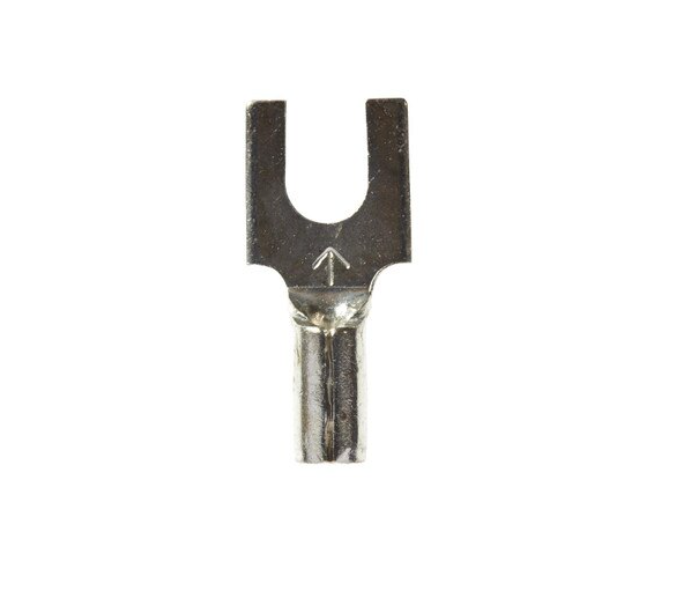

3M™ Scotchlok™ MU18-6FBK Block Fork Terminal, Non-Insulated Butted Seam, #6 Stud

Overview

3M™ Scotchlok™ MU18-6FBK Block Fork Terminal, Non-Insulated Butted Seam, #6 Stud

Product Specifications

• Brand: 3M Scotchlok™
• Manufacturer: 3M
• Manufacturer Brand: 3M Scotchlok™
• Catalog Number: MU18-6FBK
• SKU: 3M-80610038178-WS
• 3M Stock: 7100163945
• Legacy Stock Number: 80610038178
• Product Type: Block Fork Terminal
• Terminal Type: Fork Lug
• Stud Size: #6
• Insulation Type: Non-Insulated
• Barrel Type: Butted Seam Barrel
• Material: Electrolytic Copper
• Finish: Tin-Plated
• Maximum Temperature Rating: 347°F / 175°C
• Package Quantity: 1000 per Case
• Sales UOM: Each
• Typical Lead Time: 8 Days
• Country Of Origin: USA
• ECCN: EAR99
• UL Listed: Yes
• CSA Certified: Yes
• RoHS Compliant: Yes, RoHS 2011/65/EU Compliant
• REACH Status: Does Not Contain SVHC Above 0.1% by Weight
• US DOT Ground: Not Regulated
• International Air Transport Association: Not Regulated
• Application: Terminal Block Connections, Fork Lug Wiring, Electrical Termination and Industrial Wire Connection Applications
• Category: Small Terminals & Connectors
• Full Technical Description: 3M MU18-6FBK Scotchlok Block Fork Terminal; Non-Insulated Butted Seam Fork Lug for Terminal Block Applications; Features #6 Stud Size, Beveled Barrel Mouth for Easy Wire Insertion, Electrolytic Copper Construction and Tin-Plated Finish for Conductivity and Corrosion Resistance; Designed to Lie Flat Against the Barrier Portion of Terminal Blocks for Reliable Electrical Contact; UL Listed, CSA Certified and RoHS Compliant
• Sub Category: Fork Lug Terminals
• SKU Name: 3m mu18-6fbk scotchlok block fork terminal
