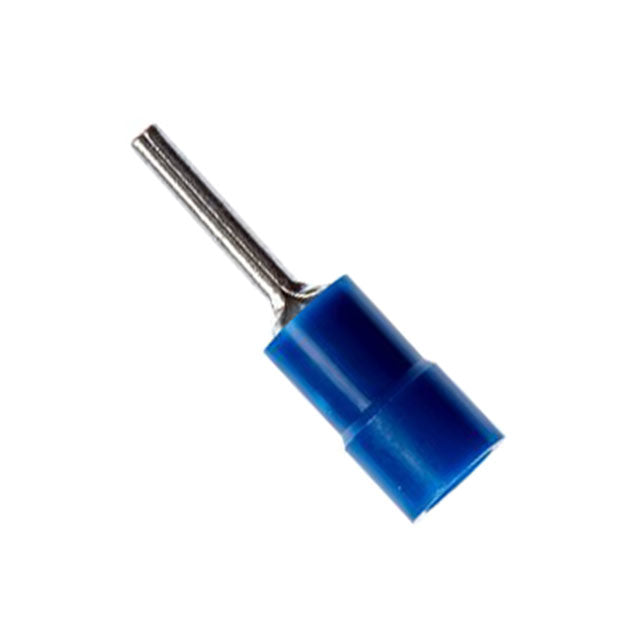

3M™ Scotchlok™ MNG14-47PX-A Nylon Insulated Pin Terminal, 100/Bottle

Overview

3M™ Scotchlok™ MNG14-47PX-A Nylon Insulated Pin Terminal, 100/Bottle

Product Specifications

• 3M ID: 80611464217
• Brand: Scotchlok™
• Manufacturer: 3M
• Manufacturer Brand: 3M Scotchlok™
• Catalog Number: MNG14-47PX-A
• Product Type: Nylon Insulated Pin Terminal
• Terminal Type: Pin
• Barrel Style: Insulation Grip
• Wire Size: 14-16 AWG
• Pin Length: 0.47 in
• Connection Width: 1.905 mm
• Overall Length: 22.86 mm
• Insulation Color: Blue
• Product Color: Blue
• Insulation Material: Nylon
• Material: Electrolytic Copper with Nylon Insulation
• Finish: Tin-Plated
• Maximum Insulation Outside Diameter: 0.145 in / 3.7 mm
• Voltage Rating: 600 V for Building Wire; 1000 V for Signs, Fixtures or Luminaires
• Maximum Recommended Voltage Rating: 600 V
• Maximum Voltage Rating: 600 to 1000 V
• Operating Temperature Range: -40°C to 105°C / -40°F to 221°F
• Maximum Operating Temperature: 105°C
• Package Quantity: 100 per Bottle; 100 per Carton; 500 per Case
• UL Listed: Yes
• CSA Certified: Yes
• RoHS Compliant: Yes, RoHS 2011/65/EU Compliant
• UL File Number: E23438
• Application: Set Screw Connections, Clamp Connections, Pin Terminal Wiring, Electrical Contact Connections and Industrial Wire Termination
• Category: Small Terminals & Connectors
• Catalog Description: 3M Scotchlok Pin Terminal is color-coded for quick wire-size identification and features a nylon-insulated, butted-seam barrel with a funnel-designed seamless brass sleeve for easy wire insertion. The flared nylon sleeve provides positive grip and supports reliable crimping.
• Full Technical Description: 3M MNG14-47PX-A Scotchlok Nylon Insulated Pin Terminal; Designed for 14-16 AWG Wire; Features Blue Nylon Insulation, Insulation Grip Barrel Style, 0.47 Inch Pin Length and Tin-Plated Electrolytic Copper Construction; Provides Quick Connection for Set Screws or Clamps Used to Make Electrical Contact; Rated 600V for Building Wire and 1000V for Signs, Fixtures or Luminaires; UL Listed, CSA Certified and RoHS Compliant
• SKU Name: 3m mng14-47px-a scotchlok nylon pin terminal
