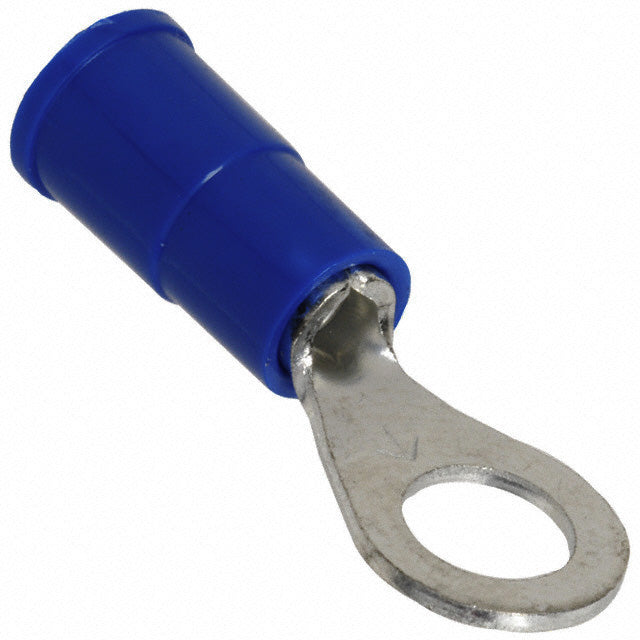

3M MVU14-10RK Scotchlok™ Vinyl Insulated Ring Terminal, 14-16 AWG, #10 Stud

Overview

3M MVU14-10RK Scotchlok™ Vinyl Insulated Ring Terminal, 14-16 AWG, #10 Stud

Product Specifications

• DigiKey Part Number: 920010-07-ND
• Manufacturer: 3M
• Manufacturer Product Number: MVU14-10RK
• Base Product Number: MVU14
• Series: Scotchlok™
• Description: CONN RING CIRC 14-16AWG #10
• Category: Connectors, Interconnects
• Sub Category: Ring Connectors
• Product Type: Ring Terminal
• Terminal Type: Circular
• Stud Size: #10 Stud
• Wire Gauge: 14-16 AWG
• Termination: Crimp
• Mounting Type: Free Hanging, In-Line
• Insulation: Insulated
• Insulation Material: Vinyl
• Insulation Diameter: 0.170 in / 4.32 mm
• Color: Blue
• Contact Material: ETP Copper
• Contact Finish: Tin
• Thickness: 0.030 in / 0.76 mm
• Width Outer Edges: 0.330 in / 8.38 mm
• Overall Length: 0.900 in / 22.86 mm
• Packaging: Bulk
• Part Status: Active
• Application: Ring Terminal Connections, Crimp Wire Termination, Electrical Panel Wiring and Industrial Wire Connections
• Full Technical Description: 3M MVU14-10RK Scotchlok Vinyl Insulated Ring Terminal; Designed for 14-16 AWG Wire and #10 Stud Connections; Features Blue Vinyl Insulation, Circular Ring Terminal Design, Crimp Termination, ETP Copper Contact Material and Tin-Plated Finish; Free Hanging In-Line Mounting with 0.900 Inch Overall Length and 0.030 Inch Thickness
• Manufacturer Brand: 3M Scotchlok™
• SKU Name: 3m mvu14-10rk scotchlok vinyl ring terminal

Resources

• Manufacturer Datasheet
