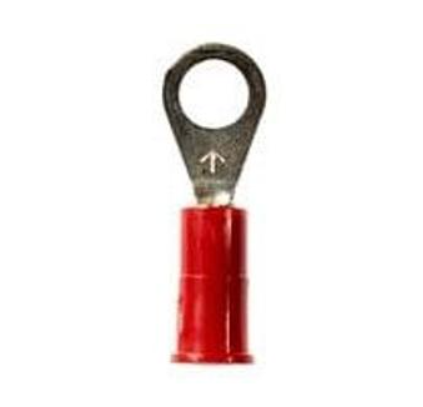

3M MV18-10R/LX Scotchlok Ring Vinyl Insulated

Overview

3M MV18-10R/LX Scotchlok Ring Vinyl Insulated Terminal

Product Specifications

• UPC: 05112858732
• Standard Package: 100 per Carton
• Approval: UL, CSA
• Additional Information: RoHS 2011/65/EU Compliant; Size 0.93 Inch L x 0.31 Inch W x 0.03 Inch Thk; Material Copper; Finish Electro-Tin Plated
• Catalog Number: MV18-10R/LX
• Type: Standard, Ring, Brazed Seam Barrel, Funnel Entry
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Color: Red
• Insulation Type: Vinyl Insulated
• Stud Size: #10
• Temperature Rating: -40 to 221 Deg F
• Catalog Description: 3M SCOTCHLOK COLOR-CODED LARGE RING TONGUE TERMINAL ENSURES AN IDEAL FIT WHILE OFFERING RELIABLE AND SAFE PERFORMANCE. THE TERMINAL HAS A VINYL-INSULATED, BRAZED-SEAM BARREL AND WITHSTANDS TEMPERATURES OF -40 TO 221 DEGREES F (-40 TO 105 DEGREES C). ELECTROLYTIC COPPER CONSTRUCTION OFFERS GOOD CONDUCTIVITY AND A TIN-PLATED FINISH RESISTS CORROSION.
• Category: Small Terminals & Connectors
• Full Technical Description: Standard, Ring, Brazed Seam Barrel, Funnel Entry Type; Red Color; 22 AWG min. Conductor Size; 18 AWG Max. Conductor Size; UL, CSA Approval; -40 to 221 Deg F Temperature Rating; 100 Per Carton Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; RoHS 2011/65/Eu Compliant; Size 0.93 Inch L X 0.31 Inch W X 0.03 Inch Thk; Material Copper; Finish Electro-Tin Plated
• Made In Usa: Yes
• Manufacturer: 3M Co.
• Manufacturer Brand: 3M MRO Solutions
• Sub Category: Ring Lug
• Unspsc: 31200000
• UPC 12 Digit: 051128587324
• SKU Name: 3m mv1810r/lx
