Overview

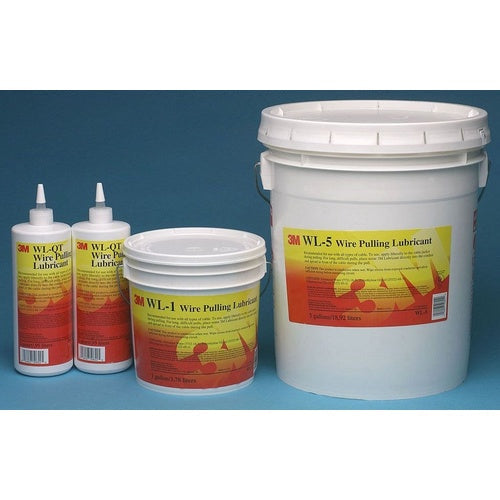

3M WL-1 Wire Pulling Lubricant Gel, One Gallon,

Product Specifications

• UPC: 05400750623
• Additional Information: RoHS Compliant; Overall Dimension 60 Inch Length x 0.75 Inch Width x 7 Inch Thickness; Color Clear; Boiling Point 100 Deg C
• Catalog Number: WL-1
• Model: WL
• Base Material: Polymer
• Container Type: Pail
• Container Capacity: 1 Gallon
• Temperature Rating: 20 to 120 Deg F
• Application: Electrical/Communication Cable
• Approval: UL, CSA
• Catalog Description: 3M WIRE PULLING LUBRICANT WL IS A TRANSLUCENT POLYMER GEL THAT ACTS AS AN EXCELLENT LUBRICANT FOR PULLING BOTH ELECTRICAL AND COMMUNICATION CABLE. THIS LUBRICANT GEL WIPES OFF THE CABLE QUICKLY AND CLEANLY BEFORE TERMINATING OR SPLICING. THE LUBRICANT HAS A LOW COEFFICIENT OF FRICTION WHICH LESSENS THE CHANCE OF CABLE JACKET DAMAGE FROM HIGH PULLING FORCES.
• Category: Paint,Chemicals, Etc.
• Full Technical Description: UL, CSA Approval; Electrical/Communication Cable Application; 20 to 120 Deg F Temperature Rating; Pail Container Type; Polymer Base Material; 1 Gallon Container Capacity; RoHS Compliant; Overall Dimension 60 Inch Length X 0.75 Inch Width X 7 Inch Thickness; Color Clear; Boiling Point 100 Deg C; WL Model
• Made In Usa: Yes
• Manufacturer: 3M Co.
• Manufacturer Brand: 3M Electrical Products
• Sub Category: Cable Fishing/Pulling Lubricant
• Unspsc: 31201523
• UPC 12 Digit: 054007506232
• SKU Name: 3m wl1

Resources

• Material Safety Data Sheet (MSDS)
• Manufacturer Spec Sheet
