Product information
Overview

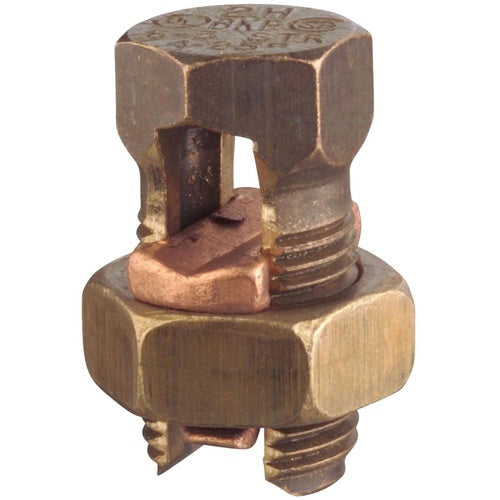

Blackburn 40H Split Bolt 4/0Cu(C40)
Product Specifications
- UPC: 78378620017
- Minimum Tap Conductor Size: 8 AWG Solid
- Maximum Tap Conductor Size: 250 KCMIL
- Material: Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Pressure Bar
- Approval: UL, CSA
- Additional Information: Overall Dimension 1-5/16 Inch Length x 2-5/32 Inch Height
- Catalog Number: 40H
- Brand Name: Blackburn
- Model: H
- Type: Split Bolt
- Installation: Hex Head Split Bolt
- Conductor Material: Copper
- Minimum Run Conductor Size: 1 AWG Stranded
- Maximum Run Conductor Size: 250 KCMIL
- Catalog Description: TYPE H - HIGH STRENGTH SPLIT-BOLT CONNECTOR, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 250 KCMIL-1 STR, CONDUCTOR RANGE FOR MIN TAP WITH ONE MAX MAIN 8 SOL
- Category: Large Terminals & Connectors
- Full Technical Description: Split-Bolt Type; Corrosion Resistant High Strength Bronze Alloy (Bolt/Nut), Copper (Pressure Bar) Material; 1 AWG Stranded min. Run Conductor Size; 250 kcmil Max. Run Conductor Size; 8 AWG Solid min. Tap Conductor Size; 1 AWG Stranded Max. Tap Conductor Size; Hex Head Split Bolt Installation; Copper Conductor Material; UL, CSA Approval; Overall Dimension 1-5/16 Inch Length X 2-5/32 Inch Height
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Blackburn
- Sub Category: Mechanical Single Cable Tap
- Unspsc: 39121408
- UPC 12 Digit: 783786200177
- SKU Name: 40h blkbrn
