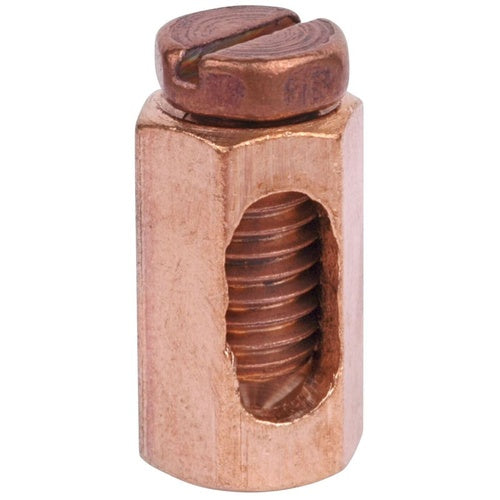

Blackburn 4N #6Awg Connector

Overview

Blackburn 4N #6Awg Connector

Product Specifications

• UPC: 78378685520
• Catalog Number: 4N
• Model: N
• Installation: SLOTTED HEX HEAD SCREW
• Conductor Material: ACSR, COPPER
• Minimum Run Conductor Size: 8 AWG (ACSR), 6 AWG SOLID (COPPER)
• Maximum Run Conductor Size: 6 AWG (ACSR), 4 AWG STRANDED (COPPER)
• Material: COPPER ALLOY
• Additional Information: SIZE 1/2 INCH W X 0.775 INCH H
• Catalog Description: COPPER TYPE N - SERVICE ENTRANCE CONNECTOR FOR WIRE RANGE ACSR 6 TO 8, COPPER 6 SOLID TO 4 STRANDED
• Category: Service Entrance Cable Fittings
• Full Technical Description: Copper Alloy Material; 8 AWG (ACSR), 6 AWG Solid (Copper) min. Run Conductor Size; 6 AWG (ACSR), 4 AWG Stranded (Copper) Max. Run Conductor Size; Slotted Hex Head Screw Installation; ACSR, Copper Conductor Material; Size 1/2 Inch W X 0.775 Inch H; N Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786855209
• SKU Name: 4n blackburn
