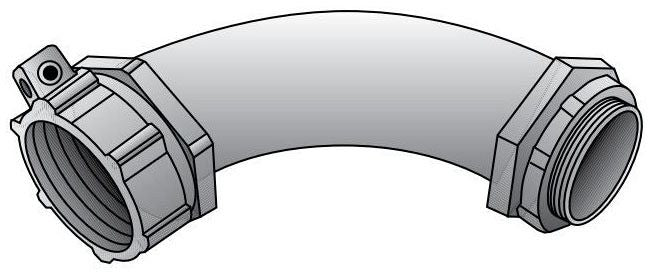

OZ-Gedney 4Q9400LTG 4 Inch 90 Degree Liquidtight Connector, Insulated, with Ground Lug

Overview

O-Z Gedney 4Q9400LTG 4 Inch 90 Degree Liquidtight Connector, Insulated, with Ground Lug

Product Specifications

• UPC: 78312661977
• UPC 12 Digit: 783126619775
• Brand: Ground-Tite
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Catalog Number: 4Q-9400LT
• Part Number: 4Q9400LTG
• Model: 4Q-L
• Type: 90 Degree
• Product Description: OZ-Gedney 4Q-9400LT 4" 90D Liquidtight Connector
• Product Type: Liquidtight Flexible Conduit Connector
• Connector Type: 90 Degree Male Seal Connector
• Trade Size: 4 in
• Throat Type: Insulated with Ground Lug
• Material: Malleable Iron Body and Gland Nut; Zinc-Plated Steel Ferrule
• Finish: Zinc Electroplated
• Used On: Flexible Metallic Liquidtight Conduit
• Installation: Threaded
• Environmental Conditions: Oil-Tight; Rain-Tight
• Application: Hazardous Locations, Liquidtight Conduit Connections, Flexible Metallic Conduit Installations and Industrial Raceway Systems
• Approval: UL; CSA
• Category: Liquid Tight Flexible Conduit Fittings
• Sub Category: Liquidtight Flexible Conduit Connector
• UNSPSC: 39121420
• Unique Product Key: 5916096
• Commodity Code Enhanced: 24100
• Catalog Description: Liquidtight flexible conduit connector, 90 degree male type, with insulated throat and ground lug. Designed for 4-inch flexible metallic liquidtight conduit with a zinc-electroplated malleable iron body/nut and a zinc-electroplated steel ferrule.
• Full Technical Description: O-Z Gedney 4Q9400LTG 90 Degree Liquidtight Flexible Conduit Connector; 4 Inch Trade Size; Insulated Throat with Ground Lug; Malleable Iron Body and Gland Nut with Zinc-Plated Steel Ferrule; Threaded Installation for Flexible Metallic Liquidtight Conduit; Oil Tight and Rain Tight Environmental Protection; Suitable for Hazardous Location Applications; UL and CSA Approved
• SKU Name: oz gedney 4q9400ltg 4 in 90 degree liquidtight connector

Resources

• Manufacturer Spec Sheet
