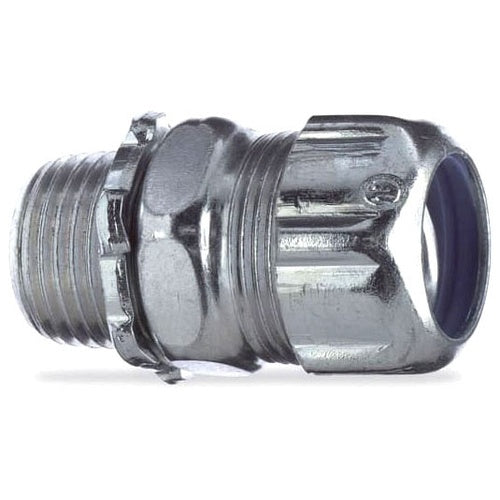

T&B 5237 2" Non-Insulated Liquidtight Connector Steel

Overview

T&B 5237 2" Non-Insulated Liquidtight Connector Steel

Product Specifications

• UPC: 78621005237
• Used On: Liquid Tight Flexible Metallic Conduit
• Additional Information: RoHS Compliant; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard IEC/EN 61386-1, NEMA FB-1, NFPA 70, Federal Specification A-A-50552
• Catalog Number: 5237
• Model: 5200
• Type: Straight
• Throat Type: Non-Insulated
• Trade Size: 2 Inch
• Material: Zinc Electroplated Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone)
• Standard Package: 5
• Approval: UL, CSA, CE
• Catalog Description: LIQUIDTIGHT CONDUIT FITTING, STRAIGHT 2 INCH, NON-INSULATED MALLEABLE IRON
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Zinc Electroplated Chromate Coated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring), Zinc Plated Steel (Ground Cone) Material; Liquid Tight Flexible Metallic Conduit Used on; UL, CSA, CE Approval; 5 Standard Package; 2 Inch Trade Size; Non-Insulated Throat Type; RoHS Compliant; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard Iec/En 61386-1, NEMA FB-1, NFPA 70, Federal Specification A-A-50552; 5200 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210052373
• SKU Name: 5237

Resources

• Technical Drawing
• Manufacturer Spec Sheet
