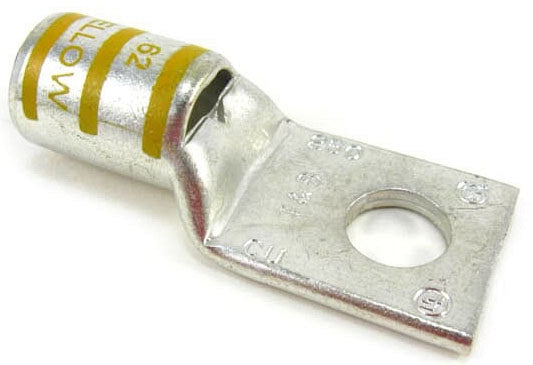

T&B 54172 250 kcmil Copper 1-Hole Compression Lug

Overview

T&B 54172 250 kcmil Copper 1-Hole Compression Lug

Product Specifications

• Catalog Description: COPPER ONE-HOLE LUG, STANDARD BARREL, PEEP HOLE, 250 KCMIL, 1/4 INCH BOLT SIZE, TIN PLATED
• Category: Lugs
• Full Technical Description: Copper One-Hole Compression Lug; Standard Straight Barrel Type; High Conductivity Electro Tin Plated Wrought Copper Material; Designed for Copper Conductors; 250 kcmil Code Conductor Size; 1/4 Inch Stud Size; 1 Pad Hole; Peep Hole Feature; Top/Bottom Stacking Feature; Yellow Color Code; Die Index 62; Pad Size 0.65 Inch Length x 1.13 Inch Width x 0.14 Inch Thickness; Overall Length 2 Inch; Voltage Rating 600 Volt to 35 Kilovolt; UL and CSA Approved
• Made In Usa:
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210541723
• SKU Name: 54172-TB

Resources

Manufacturer Specification Sheet
