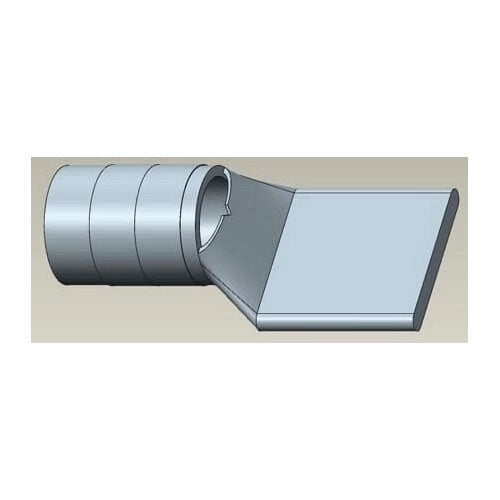

T&B 54860BEBT Copper Tin Plated Blank Tongue Lug Long 1/0 Pink

Overview

T&B 54860BEBT Copper Tin Plated Blank Tongue Lug Long 1/0 Pink

Product Specifications

• UPC: 78621082365
• Color: PINK
• Die Index: 42
• Material: ELECTROLYTIC TIN PLATED WROUGHT COPPER
• Overall Length: 2-31/32 INCH
• Approval: UL, CSA
• Catalog Number: 54860BEBT
• Brand Name: Color-Keyed[R]
• Model: 548
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 1/0 AWG (CODE), 1 AWG (FLEX), 225/24 (FLEX)
• Barrel Type: LONG
• Pad Size: 1-5/8 INCH L X 3/4 INCH W X 1/8 INCH THK
• Catalog Description: COPPER BLANK TONGUE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE 1/0 AWG, TIN PLATED, DIE CODE 42, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: Electrolytic Tin Plated Wrought Copper Material; Pink Color; 2-31/32 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1/0 AWG (Code), 1 AWG (Flex), 225/24 (Flex) Conductor Size; 42 Die Index; 1-5/8 Inch L X 3/4 Inch W X 1/8 Inch Thk Pad Size; Long Barrel Type; COLOR-KEYED[R] Brand; 548 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210823652
• SKU Name: 54860bebt t & b
