T&B 54866BE 4/0 AWG Copper 2-Hole Compression Lug

Overview

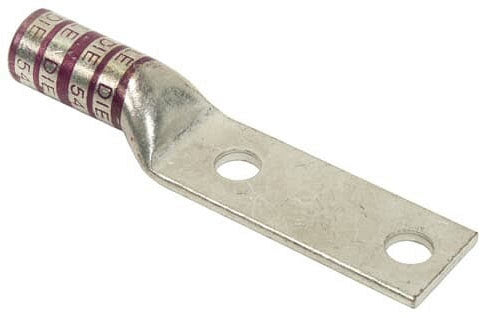

T&B 54866BE 4/0 AWG Copper Long Barrel 2-Hole Compression Lug

Product Specifications

• Catalog Description: COPPER TWO-HOLE LUG, LONG BARREL, BLIND END, 4/0 AWG, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING
• Category: Lugs
• Full Technical Description: Copper Two-Hole Compression Lug; Long Straight Barrel Type; Blind End with Inspection Hole; Electro Tin Plated Wrought Copper Material; Designed for Copper Conductors; 4/0 AWG Code Conductor Size, 3/0 AWG Weld, 182 kcmil Flex, and 450/24 Flex; 1/2 Inch Stud Size; 2 Pad Holes; 1-3/4 Inch Pad Hole Spacing; Purple Die Color Code; Die Index 54; Pad Size 3 Inch Length x 1.03 Inch Width x 0.14 Inch Thickness; Overall Length 4.7 Inch; Voltage Rating 600 Volt to 35 Kilovolt; UL and CSA Approved
• Made In Usa:
• Manufacturer: Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210898049
• SKU Name: 54866BE
