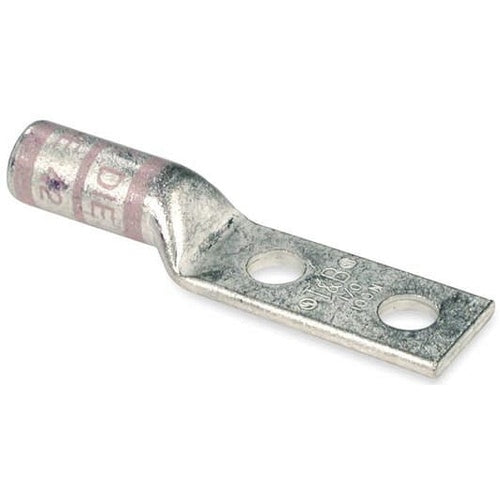

T&B 54888BE 1250 Copper Lug Long Barrel 2-Hole Str 1/2"

Overview

T&B 54888BE 1250 Copper Lug Long Barrel 2-Hole Str 1/2"

Product Specifications

• UPC: 78621075458
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Die Index: 140
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 7.88 Inch
• Approval: UL, CSA
• Catalog Number: 54888BE
• Model: 548
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 1250 KCMIL (Code)
• Barrel Type: Long, Straight
• Pad Size: 3 Inch L x 2.42 Inch W x 0.35 Inch Thk
• Number Of Pad Holes: 2
• Catalog Description: COPPER TWO-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE 1250 KCMIL, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 140
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; 7.88 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1250 kcmil (Code) Conductor Size; 1/2 Inch Stud Size; 140 Die Index; 3 Inch L X 2.42 Inch W X 0.35 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Straight Barrel Type; 548 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210754581
• SKU Name: 54888be t & b
