T&B 54909BE 1/0 AWG Copper 1-Hole Compression Lug

Overview

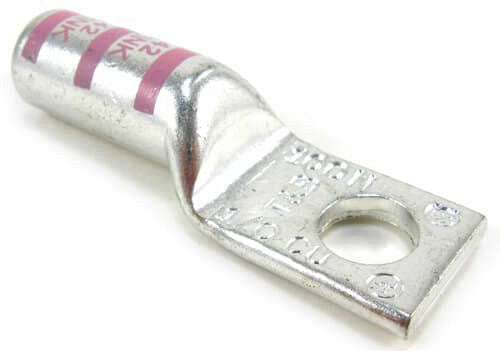

T&B 54909 1/0 AWG Copper Long Barrel 1-Hole Compression Lug

Product Specifications

• Catalog Description: COPPER ONE-HOLE LUG, LONG BARREL, BLIND END, 1/0 AWG, 3/8 INCH BOLT SIZE, TIN PLATED
• Category: Lugs
• Full Technical Description: Copper One-Hole Compression Lug; Long Straight Barrel Type; Blind End with Inspection Hole; Electro Tin Plated Wrought Copper Material; Designed for Copper Conductors; 1/0 AWG Code Conductor Size and 90.8 kcmil 225/24 Flex Conductor Size; 3/8 Inch Stud Size; 1 Pad Hole; Pink Die Color Code; Die Index 42; Pad Size 0.93 Inch Length x 0.75 Inch Width x 0.13 Inch Thickness; Overall Length 2.23 Inch; Voltage Rating 600 Volt to 35 Kilovolt; UL and CSA Approved
• Made In Usa:
• Manufacturer: Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210890111
• SKU Name: 54909BE

Resources

Manufacturer Specification Sheet
