T&B 54970BE 4/0 AWG Copper 1-Hole Compression Lug

Overview

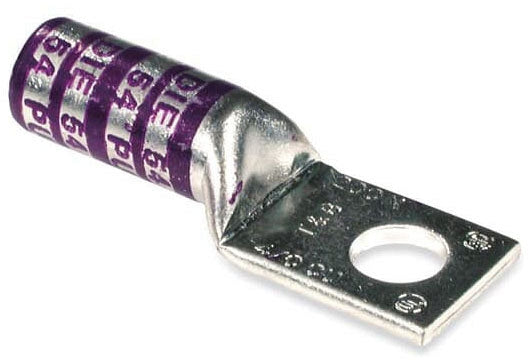

T&B 54970BE 4/0 AWG Copper Long Barrel 1-Hole Compression Lug

Product Specifications

• Catalog Description: COPPER ONE-HOLE LUG, LONG BARREL, BLIND END, 4/0 AWG, 1/2 INCH BOLT SIZE, TIN PLATED
• Category: Lugs
• Full Technical Description: Copper One-Hole Compression Lug; Long Straight Barrel Type; Blind End with Inspection Hole; Electro Tin Plated Wrought Copper Material; Designed for Copper Conductors; 4/0 AWG Code Conductor Size, 3/0 AWG Weld/Flex, 450/24 Flex, and 182 kcmil Flex; 1/2 Inch Stud Size; 1 Pad Hole; Purple Die Color Code; Die Index 54; Pad Size 1.25 Inch Length x 1.03 Inch Width x 0.14 Inch Thickness; Overall Length 2.95 Inch; Voltage Rating 600 Volt to 35 Kilovolt; UL and CSA Approved
• Made In Usa:
• Manufacturer: Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210898292
• SKU Name: 54970BE

Resources

Manufacturer Specification Sheet
