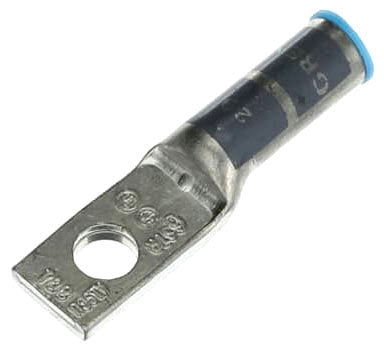

T&B 60107 #6 AWG Aluminum 1-Hole Compression Lug

Overview

T&B 60107 #6 AWG Aluminum/Copper Long Barrel 1-Hole Compression Lug

Product Specifications

• Catalog Description: ALUMINUM ONE-HOLE LUG, LONG BARREL, BLIND END, #6 AWG, 1/4 INCH BOLT SIZE, TIN PLATED
• Category: Lugs
• Full Technical Description: Aluminum One-Hole Compression Lug; Long Straight Barrel Type; Blind End Design; Electro Tin Plated Wrought Aluminum Material; Designed for Aluminum or Copper Conductors; 6 AWG Conductor Size; 1/4 Inch Stud Size; 1 Pad Hole; Gray Die Color Code; Die Index 29; Pad Size 0.75 Inch Length x 0.47 Inch Width x 0.13 Inch Thickness; Overall Length 1.67 Inch; Includes Top/Bottom Stacking Feature; Voltage Rating 600 Volt to 35 Kilovolt; UL and CSA Approved
• Made In Usa:
• Manufacturer: Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210601076
• SKU Name: 60107-TB

Resources

Manufacturer Specification Sheet
