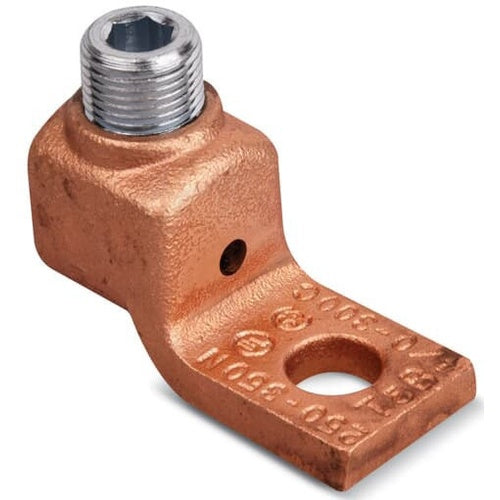

T&B 71010-TB Locktite Copper Cone Screw Lug 4-2/0

Overview

T&B 71010-TB Locktite Copper Cone Screw Lug 4-2/0

Product Specifications

• UPC: 78621071010
• Material: Copper
• Number Of Pad Holes: 1
• Pad Size: 27/32 Inch L x 23/32 Inch W x 3/16 Inch Thk
• Stud Size: 3/8 Inch
• Overall Length: 1-21/32 Inch
• Approval: UL, CSA
• Catalog Number: 71010-TB
• Brand Name: LOCKTITE[R]
• Type: Cone Screw
• Number Of Conductors: 1
• Minimum Conductor Size: 4 AWG
• Maximum Conductor Size: 2/0 AWG
• Conductor Material: Copper
• Pad Type: Straight
• Catalog Description: LOCKTITE COPPER CONE SCREW LUG FOR CONDUCTOR RANGE 4-2/0, 3/8 INCH BOLT HOLE, WRENCH TORQUE 150 IN/LBS
• Category: Large Terminals & Connectors
• Full Technical Description: Cone Screw Type; Copper Material; 1-21/32 Inch Overall Length; 4 AWG min. Conductor Size; 2/0 AWG Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 3/8 Inch Stud Size; 27/32 Inch L X 23/32 Inch W X 3/16 Inch Thk Pad Size; 1 Pad Hole(S); Straight Pad Type; LOCKTITE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210710105
• SKU Name: 71010 t&b

Resources

• Manufacturer Spec Sheet
