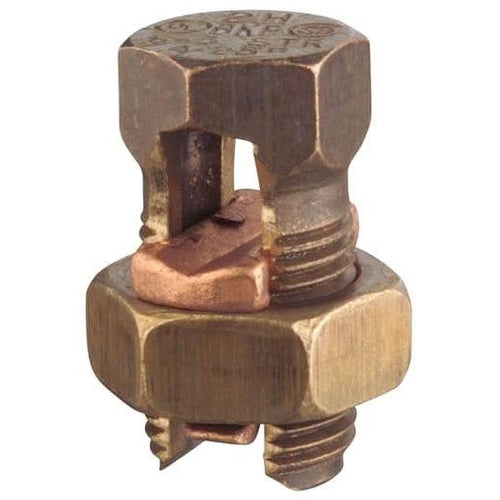

Blackburn 9-Hole 10Str Copper Split Bolt

Product Specifications

• UPC: 78378620001
• Minimum Tap Conductor Size: 14 AWG Solid
• Maximum Tap Conductor Size: 10 AWG Stranded
• Material: Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Pressure Bar
• Approval: UL, CSA
• Additional Information: Overall Dimension 1/2 Inch Length x 25/32 Inch Height
• Catalog Number: 9H
• Brand Name: Blackburn
• Model: H
• Type: Split Bolt
• Installation: Hex Head Split Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 12 AWG Solid
• Maximum Run Conductor Size: 10 AWG Stranded
• Catalog Description: TYPE H - HIGH STRENGTH SPLIT-BOLT CONNECTOR, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 10 STR-12 SOL, CONDUCTOR RANGE FOR MIN TAP WITH ONE MAX MAIN 14 SOL
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Pressure Bar Material; 12 AWG Solid min. Run Conductor Size; 10 AWG Stranded Max. Run Conductor Size; 14 AWG Solid min. Tap Conductor Size; 10 AWG Stranded Max. Tap Conductor Size; Hex Head Split Bolt Installation; Copper Conductor Material; UL, CSA Approval; Overall Dimension 1/2 Inch Length X 25/32 Inch Height; H Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786200016
• SKU Name: 9h blkbrn
