Product information
Overview

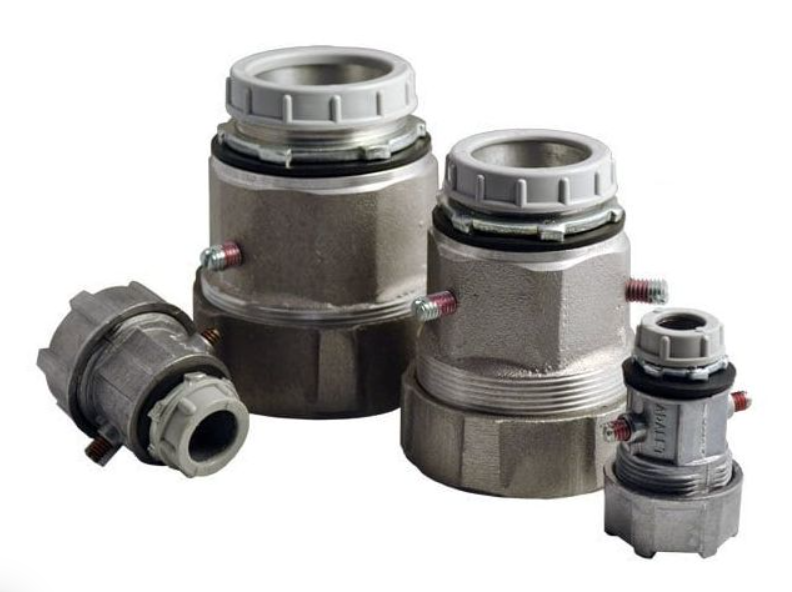

Adalet JAG-236-20 Jacketed Straight Cable Connector, 2 in Trade, Aluminum
Product Specifications
- Brand: Adalet
- Manufacturer: Adalet
- Manufacturer Part Number: 42025
- Catalog Number: JAG 236-20
- Product Type: Jacketed Straight Cable Connector
- Connector Type: Jacketed Cable Compression Fitting
- Family Series: Adalet Fittings
- Description: Fitting Used for Terminating Jacketed Cable 2.19 to 2.36 in Dia
- Conduit/Cable Type: Metal Clad Cable
- Connection Type: Compression
- Angle: Straight
- Trade Size: 2 in
- Hub Size: 2 in
- Cable Diameter Range: 2.19 to 2.36 in
- Material: Aluminum Alloy
- Composition: Metallic
- Hazardous Location: No
- Approvals: CSA; UL
- Net Weight: 0 lb
- Gross Weight: 1.5 lb
- Application: Terminating Jacketed Metal Clad Cable, Straight Compression Cable Connections, Industrial Cable Fitting Installations and Electrical Raceway Applications
- Category: Cable Fittings
- Catalog Description: Adalet JAG-236-20 is a straight compression fitting designed for terminating jacketed metal clad cable with a 2.19 to 2.36 inch cable diameter range.
- Full Technical Description: Adalet JAG-236-20 Jacketed Straight Cable Connector; Designed for Terminating Jacketed Metal Clad Cable; Fits 2.19 to 2.36 Inch Cable Diameter; 2 Inch Trade Size and Hub Size; Aluminum Alloy Metallic Construction; Straight Compression Connection; Non-Hazardous Location Design; UL and CSA Approved for Industrial Cable Fitting Applications
- Manufacturer Brand: Adalet
- Sub Category: Jacketed MC Cable Connectors
- SKU Name: adalet jag-236-20 jacketed straight cable connector
