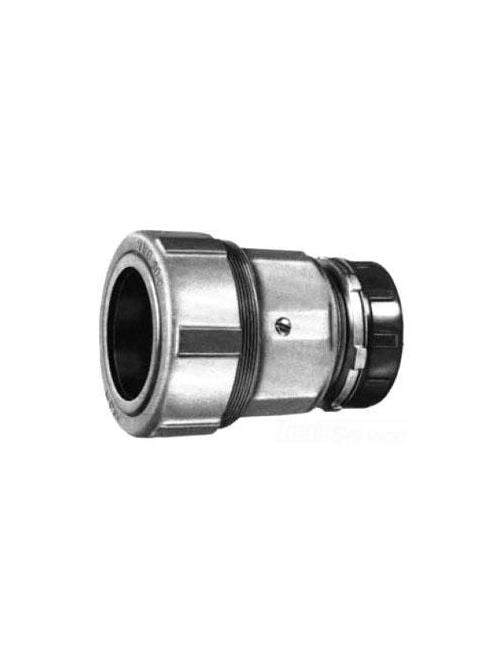

Adalet JAG-247-20 Straight Compression Fitting for Jacketed Cable, 2 in Trade Size

Product Specifications

• Brand: Adalet
• Manufacturer: Adalet
• Manufacturer Part Number: 42029
• Catalog Number: JAG-247-20
• Product Type: Cable Fitting
• Family Series: Adalet Fittings
• Description: Fitting Used for Terminating Jacketed Cable 2.35 to 2.47 in Dia
• Conduit/Cable Type: Metal Clad Cable
• Connection Type: Compression
• Angle: Straight
• Trade Size: 2 in
• Hub Size: 2 in
• Cable Diameter Range: 2.35 to 2.47 in
• Material: Aluminum Alloy
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA; UL
• Net Weight: 0 lbs
• Gross Weight: 1.5 lbs
• Country of Origin: USA
• Special Features: 2.09 in maximum core diameter
• 2.22 in drill clearance hole diameter
• Flange gasket prevents moisture penetration through threads
• Neoprene bushing for rain-tight seal
• Slip-on design with no disassembly for easy installation
• Application: Terminating Jacketed Metal Clad Cable, Weatherproof Industrial Cable Connections, Electrical Raceway Installations
• Category: Cable Fittings
• Catalog Description: Adalet JAG-247-20 is a straight compression fitting designed for terminating jacketed metal clad cable with a 2.35 to 2.47 inch cable diameter range.
• Full Technical Description: Adalet JAG-247-20 Straight Compression Cable Fitting; Fits 2.35 to 2.47 Inch Cable Diameter; 2 Inch Trade Size and Hub Size; Aluminum Alloy Metallic Construction; Straight Angle Compression Connection; Flange Gasket and Neoprene Bushing for Rain-Tight Seal; UL and CSA Approved for Industrial Cable Fitting Applications
• Manufacturer Brand: Adalet
• Sub Category: Jacketed Cable Compression Fittings
• SKU Name: adalet jag-247-20 straight compression cable fitting
