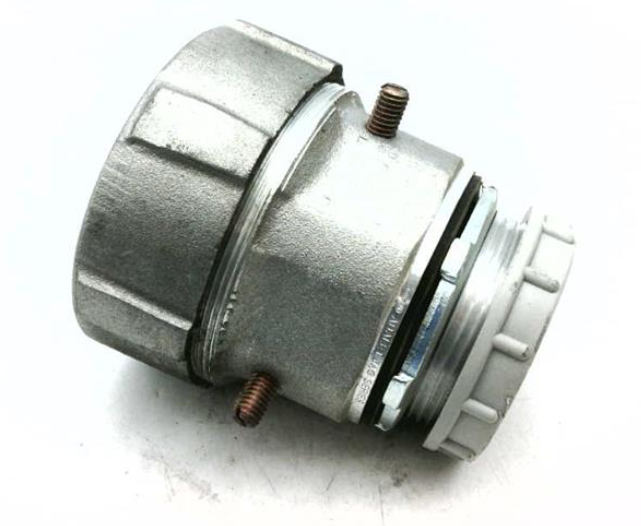

Adalet JAG-263-25 Slip-On Jacketed Metal Clad Cable Fitting for 2.35–2.47 in Cable Diameter Over Armor

Overview

Adalet JAG-263-25 Slip-On Jacketed Metal Clad Cable Fitting for 2.35–2.47 in Cable Diameter Over Armor

Product Specifications

• Brand: Adalet
• Manufacturer: Adalet
• Manufacturer Part Number: JAG-263-25
• Catalog Number: JAG-263-25
• Product Type: Cable Fitting
• Family Series: Adalet Fittings
• Description: Fitting Used for Terminating Jacketed Metal Clad Cable, 2.35–2.47 in Dia Over Armor
• Conduit/Cable Type: Metal Clad Cable
• Connection Type: Compression
• Angle: Straight
• Trade Size: N/A
• Hub Size: N/A
• Cable Diameter Range: 2.35–2.47 in Over Jacket
• Material: Aluminum Alloy
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA; UL
• Net Weight: 2.71 lbs
• Gross Weight: 2.71 lbs
• Features/Benefits:
  • Slip-on design with no disassembly for easy installation
  • Neoprene bushing for raintight seal
  • Includes locknuts, bushings, and flange gasket
  • Flange gasket prevents moisture penetration through threads
  • Corrosion-resistant aluminum alloy construction
• Application: Terminating jacketed metal clad cables in industrial, commercial, and electrical conduit installations
• Category: Conduit Fittings
• Catalog Description: Adalet JAG-263-25 is a slip-on straight connector for jacketed metal clad cables with raintight neoprene bushing and flange gasket
• Full Technical Description: Adalet JAG-263-25 Straight Compression Cable Fitting; Slip-On Design; Fits 2.35–2.47 in Diameter Over Jacket; Aluminum Alloy Metallic Construction; Includes Locknuts, Bushings, Flange Gasket; UL and CSA Approved for Industrial Electrical Applications
• Manufacturer Brand: Adalet
• Sub Category: Jacketed Metal Clad Cable Fittings
• SKU Name: adalet jag-263-25 slip-on jacketed cable connector
