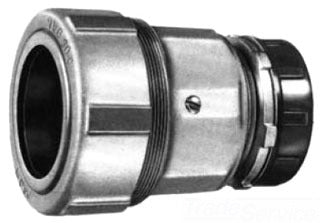

Adalet JAG‑327‑30 Straight Compression Fitting for Jacketed Metal Clad Cable, 3 in Trade Size

Overview

Adalet JAG‑327‑30 Straight Compression Fitting for Jacketed Metal Clad Cable, 3 in Trade Size

Product Specifications

• Brand: Adalet
• Manufacturer: Adalet
• Catalog Number: JAG‑327‑30
• Product Type: Jacketed Cable Compression Connector
• Family Series: Adalet Fittings
• Description: Fitting Used for Terminating Jacketed Cable 3.10 to 3.27 in Dia Over Jacket
• Conduit/Cable Type: Metal Clad Cable
• Connection Type: Compression
• Angle: Straight
• Trade Size: 3 in
• Hub Size: 3 in
• Cable Diameter Range: 3.10 to 3.27 in
• Material: Aluminum Alloy
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA; UL
• Net Weight: approx. 0 lbs (listed)
• Gross Weight: ~3.55 lbs (indicative for 3 in JAG series fittings)
• Application: Terminating jacketed metal clad cable, industrial cable fitting connections, electrical conduit installation
• Category: Cable Fittings
• Catalog Description: Adalet JAG‑327‑30 is a straight compression connector designed for jacketed metal clad cable with 3.10 to 3.27 inch diameter over jacket.
• Full Technical Description: Adalet JAG‑327‑30 Straight Compression Cable Connector; fits jacketed metal clad cables in the 3.10–3.27 in diameter range; 3 in trade size and hub size; constructed from aluminum alloy; straight compression design; UL and CSA approved for industrial electrical installations.
• Manufacturer Brand: Adalet
• Sub Category: Jacketed Cable Compression Fittings
• SKU Name: adalet jag‑327‑30 jacketed cable connector
