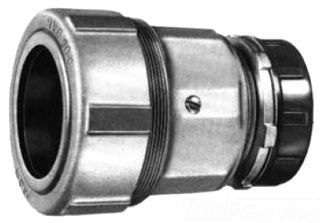

Adalet JAG-343-30 Straight Compression Fitting for Jacketed Interlocked Armored Cable, 3" Trade Size, 3.26–3.43" OD

Overview

Adalet JAG-343-30 Straight Compression Fitting for Jacketed Interlocked Armored Cable, 3" Trade Size, 3.26–3.43" OD

Product Specifications

• Brand: Adalet
• Manufacturer: Adalet
• Manufacturer Part Number: 42052
• Catalog Number: JAG-343-30
• Product Type: Cable Fitting
• Family Series: Adalet Fittings
• Description: Fitting Used for Terminating Jacketed Cable 3.26–3.43" Diameter
• Conduit/Cable Type: Metal Clad Cable
• Connection Type: Compression
• Angle: Straight
• Trade Size: 3"
• Hub Size: 3"
• Cable Diameter Range: 3.26–3.43"
• Material: Aluminum Alloy
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA; UL
• Net Weight: 2.82 lbs
• Gross Weight: 3 lbs
• Application: Terminating jacketed interlocked armored cable in industrial and electrical raceway applications
• Category: Cable Fittings
• Catalog Description: Adalet JAG-343-30 is a straight compression fitting for interlocked armored cables with a 3.26–3.43" OD range.
• Full Technical Description: Adalet JAG-343-30 Straight Compression Cable Fitting; Designed for Terminating Jacketed Interlocked Armored Cables; Fits 3.26–3.43" Cable Diameter; 3" Trade Size and Hub Size; Aluminum Alloy Metallic Construction; Straight Angle Compression Connection; UL and CSA Approved for Industrial Cable Fitting Applications
• Manufacturer Brand: Adalet
• Sub Category: Interlocked Armored Cable Fittings
• SKU Name: adalet jag-343-30 straight compression cable fitting

Resources

• Manufacturer Catalog
