Product information
Overview

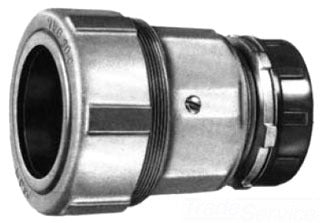

Adalet JAG-392-35 Conduit Fitting for Metal Clad Cables, 3.75–9.92 in Cable Diameter
Product Specifications
- Brand: Adalet
- Manufacturer: Adalet
- Manufacturer Part Number: 42060
- Catalog Number: JAG-392-35
- Product Type: Conduit Fitting
- Family Series: Adalet Fittings
- Description: Conduit fitting with insulated bushing and pressure ring
- Conduit/Cable Type: Metal Clad Cable
- Connection Type: Compression
- Angle: Straight
- Trade Size: 3.75–9.92 in Cable Diameter
- Hub Size: N/A
- Cable Diameter Range: 3.75–9.92 in
- Material: Aluminum Alloy
- Composition: Metallic
- Hazardous Location: No
- Approvals: CSA; UL
- Net Weight: 2.80 lb
- Gross Weight: 2.80 lb
- Application: Terminating large diameter metal clad cables in industrial or commercial installations
- Category: Conduit/Fittings
- Catalog Description: Adalet JAG-392-35 is a conduit fitting designed for 3.75–9.92 inch diameter metal clad cables with an insulated bushing and pressure ring for secure installation.
- Full Technical Description: Adalet JAG-392-35 Conduit Fitting; Straight Compression Connection; Insulated Bushing with Pressure Ring; Fits 3.75 to 9.92 Inch Cable Diameter; Aluminum Alloy Construction; UL and CSA Approved; Designed for Industrial Cable Installation
- Manufacturer Brand: Adalet
- Sub Category: Large Diameter Conduit Fittings
- SKU Name: adalet jag-392-35 conduit fitting insulated bushing
