BLACKBURN ADR6022 2-Barrel Aluminum/Copper Lug

Overview

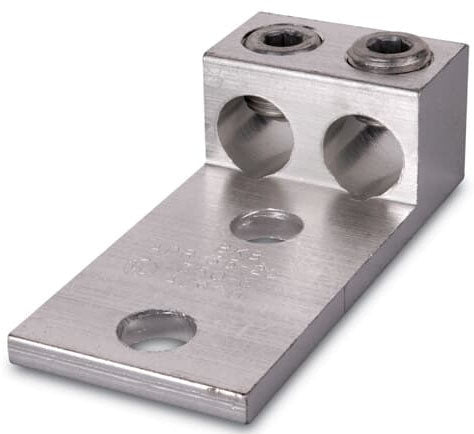

BLACKBURN ADR6022 Dual-Rated 2-Barrel Aluminum/Copper Lug

Product Specifications

• Catalog Description: TYPE ADR-ALCUL TWO-CONDUCTOR, TWO-HOLE MOUNT LUG, #2 STRANDED TO 600 KCMIL, TIN PLATED
• Category: Lugs
• Full Technical Description: ADR-ALCUL Dual-Rated Mechanical Cable Lug; Two-Barrel Type; Designed for Aluminum or Copper Conductors; Accepts 2 AWG Stranded Minimum Conductor Size to 600 kcmil Maximum Conductor Size; 2 Conductors; Tin-Plated Aluminum Material; Straight Pad Type; Allen Screw Type; 1/2 Inch Stud Size; 2 NEMA Pad Holes; 1-3/4 Inch Hole Centers; Pad Size 3-1/16 Inch Length x 3-1/2 Inch Width x 3/8 Inch Thickness; Overall Length 5-5/16 Inch; UL 486B and CSA Approved
• Made In Usa:
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783786610341
• SKU Name: ADR60-22D

Resources

Manufacturer Specification Sheet
