Product information
Overview

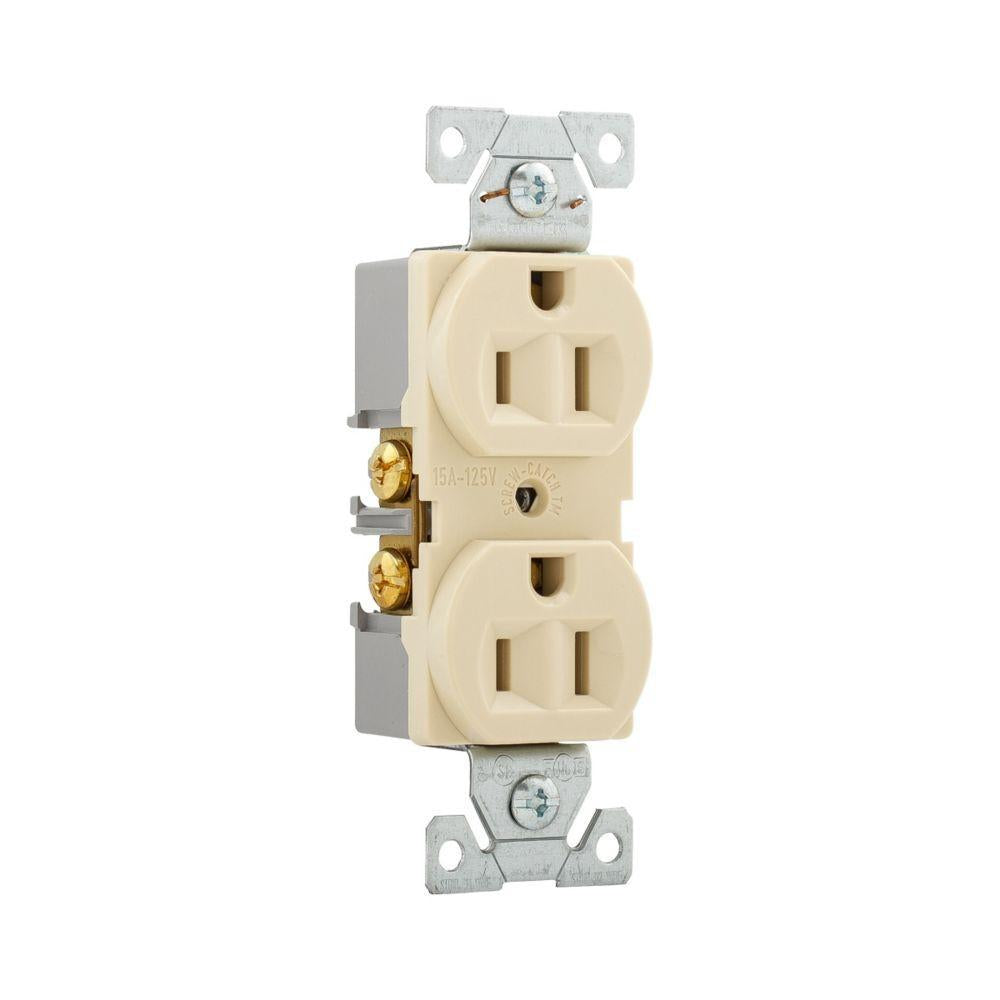

ARROW-HART 5262V 15A 125V Ivory Duplex Tamper/Weather-Resistant Receptacle
Product Specifications
- Catalog Description: STRAIGHT BLADE DUPLEX RECEPTACLE, 15A, 125V, NEMA 5-15R, IVORY, TAMPER/WEATHER-RESISTANT
- Category: Plugs & Receptacles
- Full Technical Description: Straight Blade Duplex Receptacle; Tamper-Resistant and Weather-Resistant Type; 15 Ampere Current Rating; 125 Volt AC Voltage Rating; 2-Pole, 3-Wire Configuration; NEMA 5-15R Rating; Commercial/Construction Grade; Ivory Color; Nylon Insulation; Screw Terminal Wiring Style; Wall Mount Type; Accepts 14 to 10 AWG Wire Terminals; High Impact-Resistant Thermoplastic Mounting Strap; Built-In 10 and 12 AWG Wire Strippers; Automatic Grounding System; Triple-Combination Terminal and Mounting Screws; Temperature Rating -4 to 158 Deg F; Dimensions 4.19 Inch Height x 1.3 Inch Width x 0.87 Inch Depth; Suitable for Non-Residential Applications; UL, NOM, RoHS, NAFTA, and Federal Specification Classification 6233 01 Listed
- Manufacturer: Eaton Wiring Devices
- Manufacturer Brand: ARROW-HART
- Sub Category: Duplex Receptacle
- Unspsc: 39121406
- UPC 12 Digit: 00032664704338
- SKU Name: 5262V
