Product information
Overview

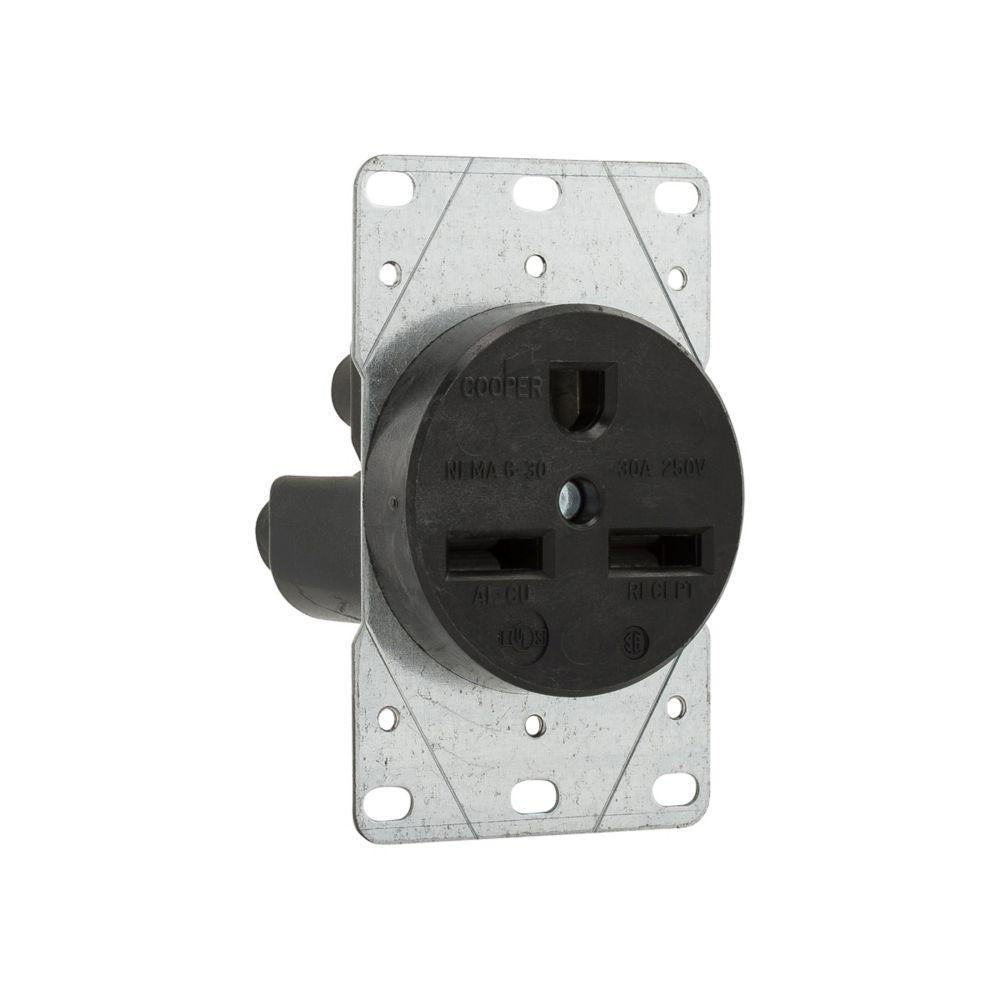

ARROW-HART 5700N 30A 250V Black Single Straight Blade Receptacle
Product Specifications
- Catalog Description: STRAIGHT BLADE SINGLE RECEPTACLE, 30 AMP, 250 VAC, NEMA 6-15R, BLACK
- Category: Plugs & Receptacles
- Full Technical Description: Straight Blade Single Receptacle; Commercial Grade; 30 Ampere Current Rating; 250 Volt AC Voltage Rating; 2-Pole, 3-Wire Configuration; NEMA 6-15R Rating; Black Color; Glass-Reinforced Nylon Material; Screw Terminal Type; Flush or Panel Mounting; Designed for Indoor and Non-Residential Applications; 4 AWG Wire Compatibility; Temperature Rating -4 to 158 Deg F; Dimensions 4.71 Inch Height x 2.5 Inch Width x 2.1 Inch Depth; cULus Listed, CSA Certified, RoHS Compliant, and Federal Specification Classification 6233 01
- Manufacturer: Eaton Wiring Devices
- Manufacturer Brand: ARROW-HART
- Sub Category: Single Receptacle
- Unspsc: 39121406
- UPC 12 Digit: 00040893018331
- SKU Name: 5700N
