Product information
Overview

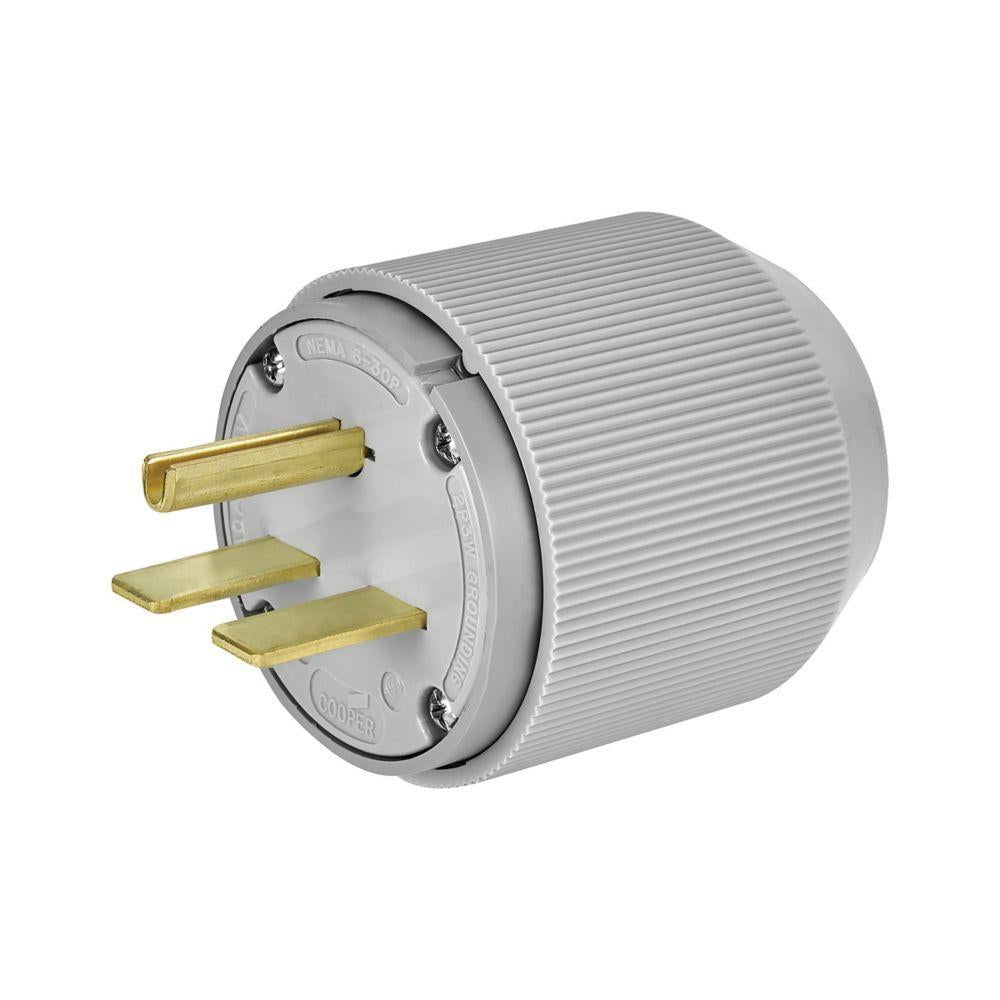

ARROW-HART 5701N 30A 250V Gray Straight Blade Plug
Product Specifications
- Catalog Description: STRAIGHT BLADE PLUG, 30 AMP, 250 VAC, NEMA 6-30P, GRAY, COMMERCIAL/INDUSTRIAL GRADE
- Category: Plugs & Receptacles
- Full Technical Description: AutoGrip Straight Blade Plug; Commercial/Industrial Grade; 30 Ampere Current Rating; 250 Volt AC Voltage Rating; 2-Pole, 3-Wire Configuration; NEMA 6-30P Rating; Gray Color; Thermoplastic Body Material; Back Wire and Threaded Terminal Type; Accepts 12 to 4 AWG Conductors; Designed for 0.425 to 1.31 Inch Diameter Cord; Internal Cord Clamp Design; Neoprene Gasket for Cord Sealing; Quick-Drive Stainless Steel Assembly Screws; Temperature Rating -40 to 95 Deg C; Dimensions 3.12 Inch Diameter x 3.81 Inch Length; cULus Listed, NOM, and Federal Specification Classification 6221 02
- Manufacturer: Eaton Wiring Devices
- Manufacturer Brand: ARROW-HART
- Sub Category: Straight Blade Plug
- Unspsc: 39121402
- UPC 12 Digit: 00040893020099
- SKU Name: 5701N
