Product information
Overview

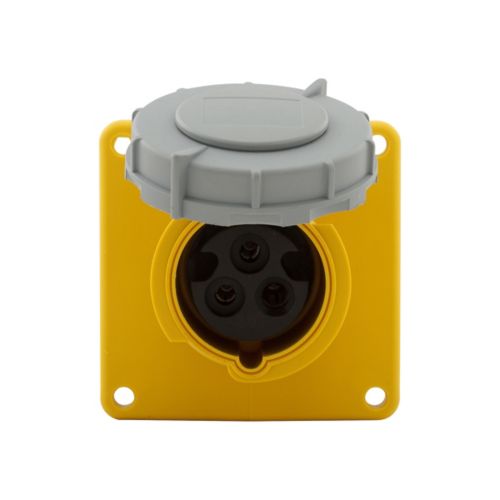

ARROW-HART AH320R4W 20A 125V Yellow Pin and Sleeve Receptacle
Product Specifications
- Catalog Description: PIN AND SLEEVE RECEPTACLE, 20 AMP, 125V, 2-POLE, 3-WIRE, YELLOW, IP67/IP69K RATED
- Category: Plugs & Receptacles
- Full Technical Description: Pin and Sleeve Receptacle; Female Gender; 20 Ampere Current Rating; 125 Volt Rating; Two-Pole, Three-Wire Grounding Configuration; Extra Heavy-Duty Device Grade; Yellow Color; Nylon Face and Body Material; Nickel-Plated Brass Contact Material; Back Wire Wiring Method; Accepts #12 to #10 AWG Wire; AHBB30 Back Box Style; IP67 and IP69K Environmental Resistance; 10 lbf-in Torque Rating; Designed for Industrial, Food and Beverage, and Wastewater Treatment Applications; Product Length/Depth 4.875 Inch; Product Height 3.125 Inch; Product Width 3.4 Inch; cRUus Certified
- Manufacturer: Eaton Wiring Devices
- Manufacturer Brand: ARROW-HART
- Sub Category: Pin and Sleeve Receptacle
- UPC 12 Digit: 032664731839
- SKU Name: AH320R4W
