Product information
Overview

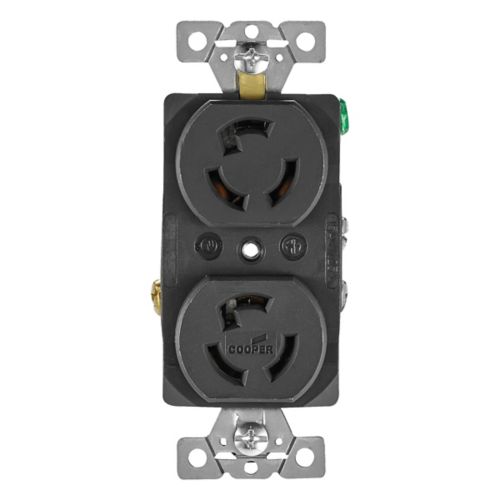

ARROW-HART AH4700 15A 125V Black Locking Duplex Receptacle
Product Specifications
- Catalog Description: LOCKING DUPLEX RECEPTACLE, 15 AMP, 125V, NEMA L5-15, 2-POLE, 3-WIRE, BLACK
- Category: Plugs & Receptacles
- Full Technical Description: Safety Grip Locking Duplex Receptacle; Extra Heavy-Duty Industrial Specification Grade; 15 Ampere Current Rating; 125 Volt Rating; 2-Pole, 3-Wire Grounding Configuration; NEMA L5-15 Configuration; Black Color; Glass-Filled Nylon Face and Body Material; Brass Contact Material; Back and Side Wiring Method; Accepts #14 to #10 AWG Wire; Operating Temperature Range -40 to 115 Deg C; Designed for Industrial Applications; UL Listed, CSA Certified, cULus Listed, NOM Certified, and Federal Specification Classification W-C375 Compliant
- Manufacturer: Eaton Wiring Devices
- Manufacturer Brand: ARROW-HART
- Sub Category: Locking Duplex Receptacle
- UPC 12 Digit: 032664432804
- SKU Name: AH4700
